Nissan Maxima Owners Manual: Exterior and interior lights
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* It is recommended that you visit a NISSAN dealer for replacement.
1. Map light
2. Personal light
3. Step light
4. Door mirror turn signal light (if so equipped)
5. Headlight assembly
6. Fog light
7. High-mounted stop light (if so equipped)
8. License plate light
9. Backup (reversing)
10. Rear combination light
Replacement procedures

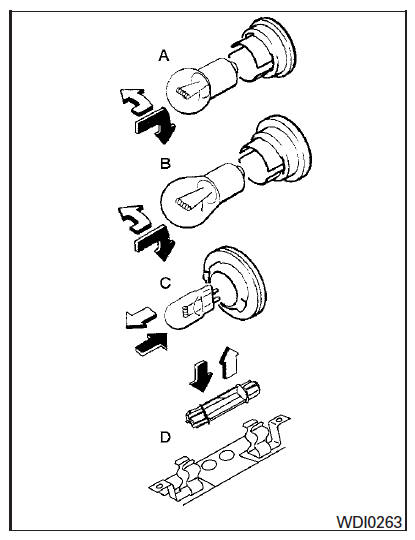

All other lights are either type A, B, C or D. When replacing a bulb, first remove the lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installation

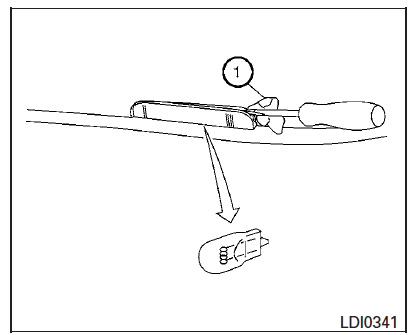

Step light
Use a cloth 1 to protect the housing.

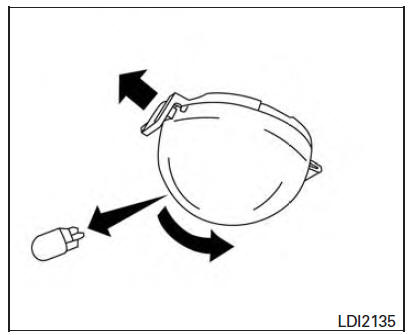

Trunk light
Fog lights
Replacing the fog light bulb
If fog light bulb replacement is required, it is
recommended that you visit a NISSAN dealer for
this service.
CAUTION
High pressure halogen gas is sealed
inside ...
