Nissan Maxima Service and Repair Manual: Wiring diagram

AIR CONDITIONER CONTROL

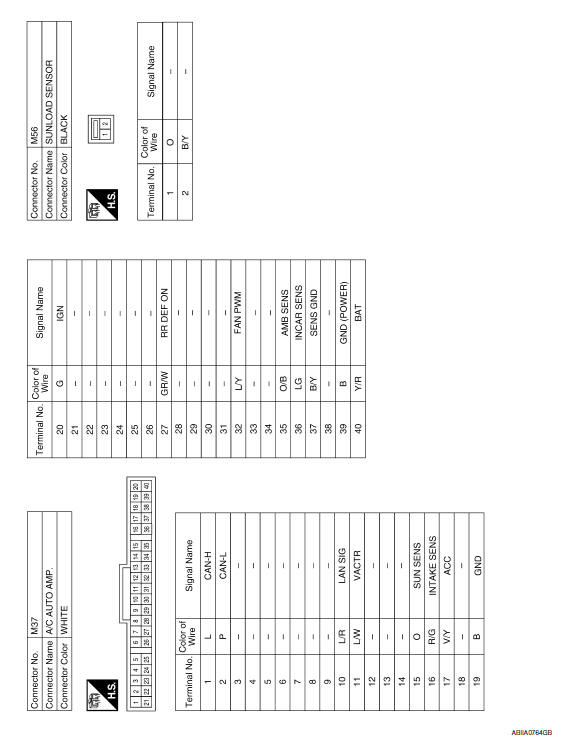

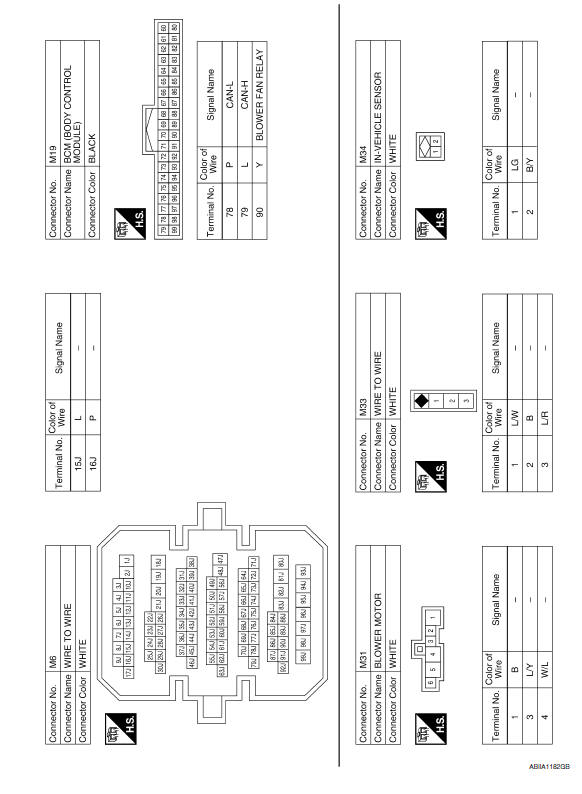

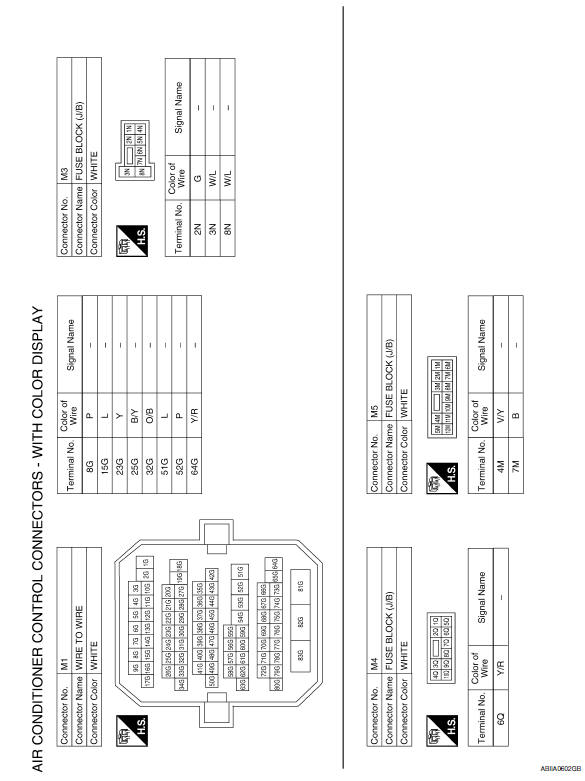

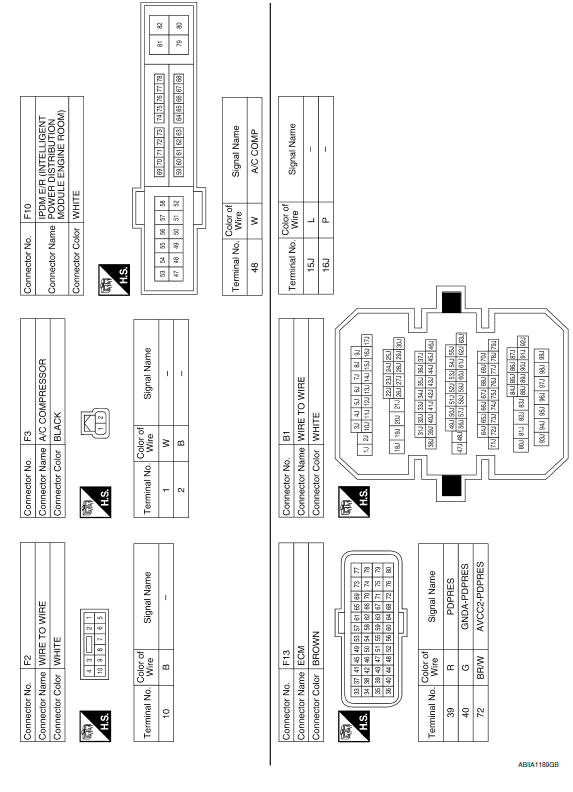

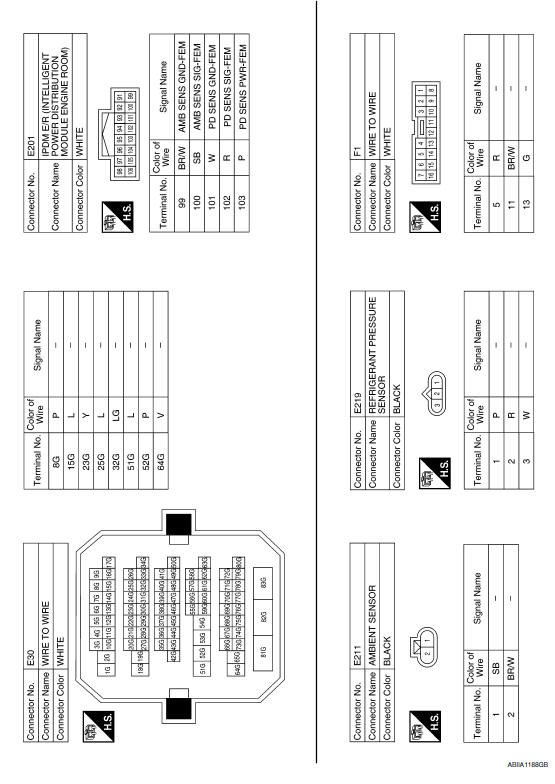

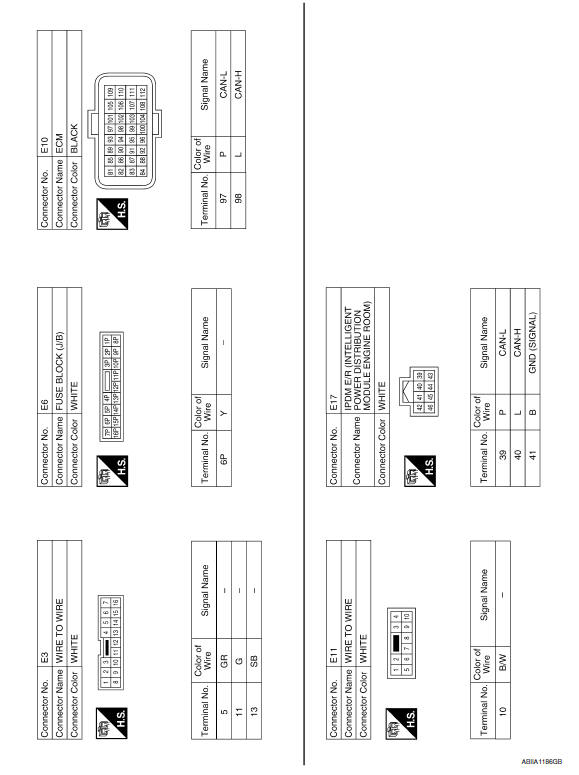

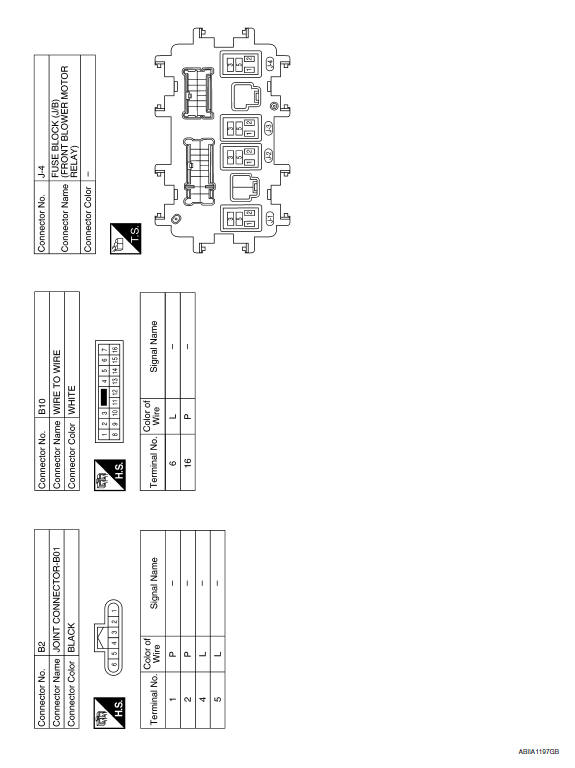

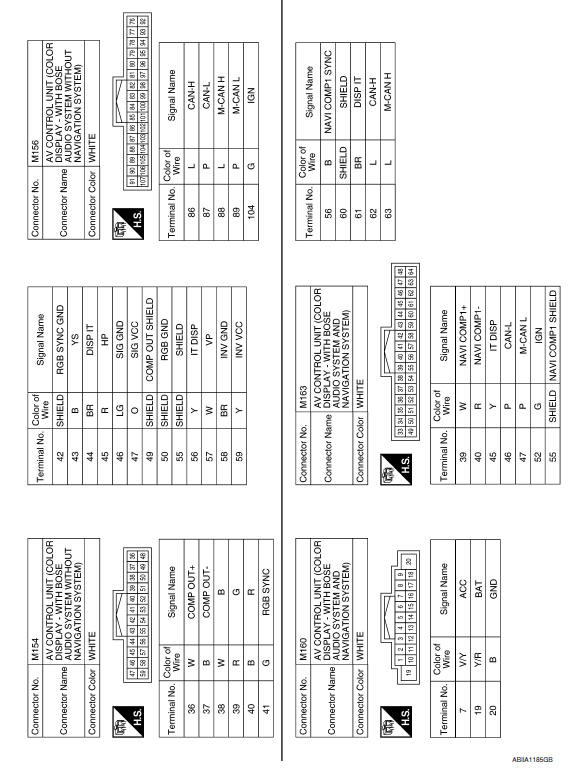

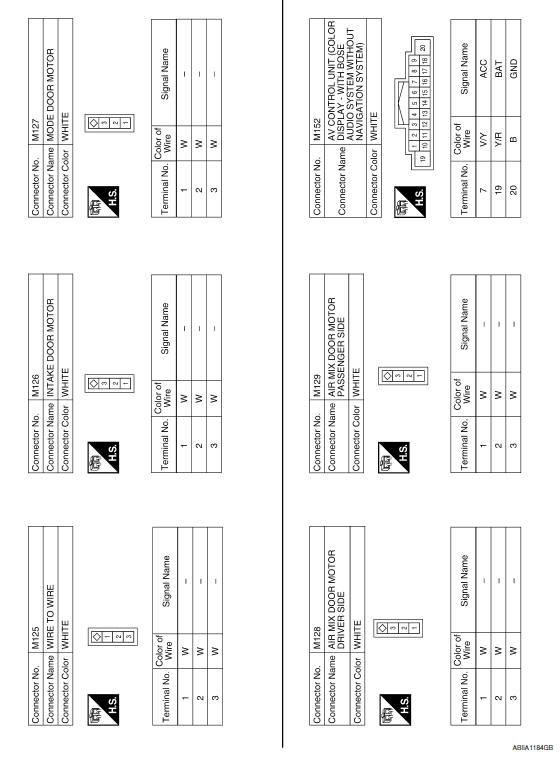

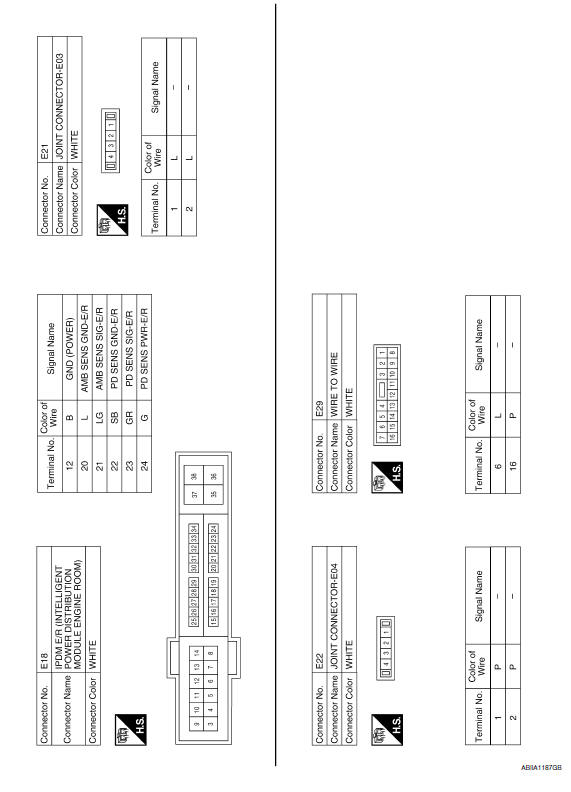

Wiring Diagram - With Color Display

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

Nissan Maxima. AIR CONDITIONER CONTROL

    ECU diagnosis information
    A/C AUTO AMP Reference Value VALUES ON THE DIAGNOSIS TOOL CONSULT MONITOR ITEM A/C AUTO AMP. HARNESS CONNECTOR TERMINAL LAYOUT TERMINALS AND REFERENCE VALUES FOR A/C AUTO AMP. Fa ...
