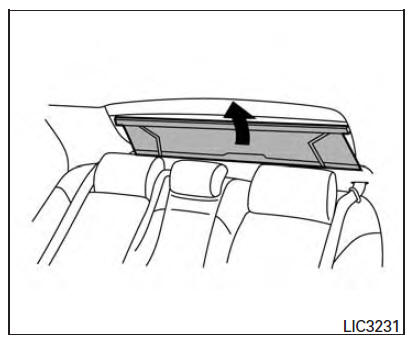

The rear sun shade operates when the ignition switch is in the ACC or ON position.

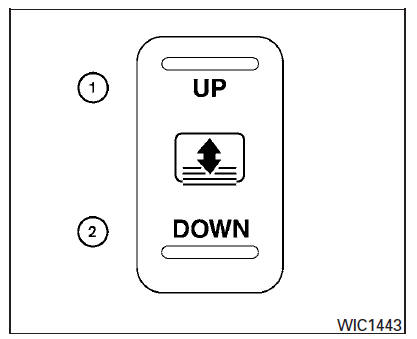

The rear sun shade switch is located on the front console.
CAUTION
Improper operation or damage to the screen may result.
This could cause improper operation or damage it.

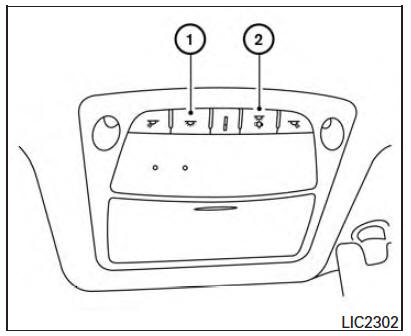

The lights will go off when the ignition switch is placed in the ON position, or the driver's door is closed and locked. The lights will also go off after a period of time when the doors are open.
NOTE:
The step lights illuminate when the driver and passenger doors are opened regardless of the interior light switch position.
These lights will turn off automatically after a period of time while doors are open to prevent the battery from becoming discharged.
CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.
