Nissan Maxima Service and Repair Manual: Door mirror

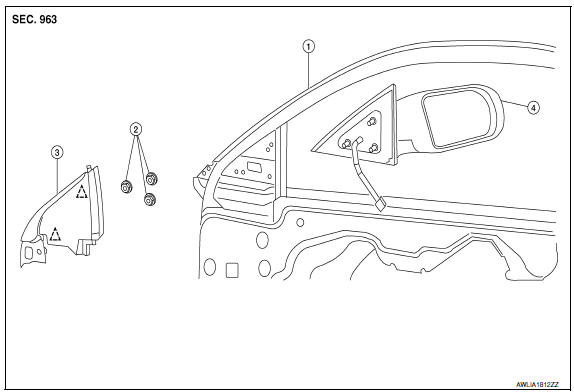

Exploded View

Nissan Maxima. Exploded View

  1. Door panel
  2. Nuts
  3. Door mirror cover
  4. Door mirror assembly
    Clip C101

Removal and Installation

REMOVAL

  1. Remove the front door finisher. Refer to INT-18, "Removal and Installation".
  2. Remove the door mirror cover.
  3. Disconnect the harness connector from the door mirror.
  4. Remove the door mirror nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.
