Nissan Maxima Service and Repair Manual: Inside mirror

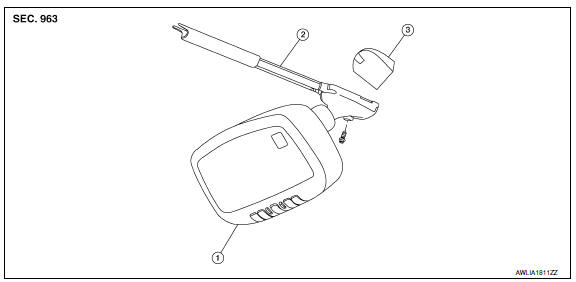

Exploded View
- Inside mirror
- Inside mirror finisher
- Mirror base
Removal and Installation
REMOVAL
- Remove inside mirror finisher.
- Remove screw of mirror base.
- Slide the mirror upward to remove.
- Disconnect the harness connector from the inside mirror.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket.
Door mirror
Exploded View
Door panel
Nuts
Door mirror cover
Door mirror assembly
Clip C101
Removal and Installation
REMOVAL
Remove the front door finisher. Refer to INT-18, "Remo ...
Other materials:
Antenna AMP
Removal and Installation
REMOVAL
Remove the rear pillar finisher RH. Refer to INT-23, "Exploded
View".
Detach the antenna amp. harness clip (A).
Disconnect the harness connectors (B) from the antenna amp.
(1).
Remove the antenna amp. screw (C) and the antenna amp. (1).
INSTALLAT ...
