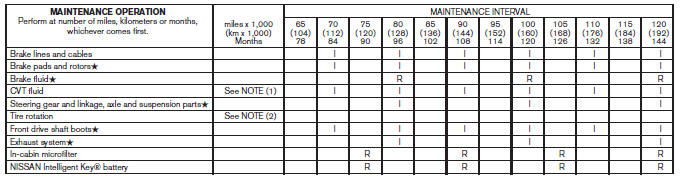

Nissan Maxima Owners Manual: Chassis & body maintenance
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,
NOTE:
Maintenance items with " " should be performed more frequently according to "Maintenance under severe driving conditions".
(1) If towing a trailer, using a camper or a car-top carrier or driving on rough or muddy roads, inspect CVT fluid deterioration at NISSAN dealers every 60,000 miles (96,000 km), then change CVT fluid if necessary. And if the inspection is not performed, change (not just inspect) CVT fluid every 60,000 miles (96,000 km).
(2) Refer to "Tire rotation" under the "General Maintenance" heading earlier in this section.
Emission control system maintenance
Abbreviations: I = Inspect and correct or replace as necessary, R =
Replace, D = Drain water
NOTE:
(1) After 40,000 miles (64,000 km) or 48 months, inspect every 10,000
miles (16,000 km) ...
Maintenance under severe operating conditions
Severe driving conditions
The maintenance intervals shown on the preceding pages are for normal
operating conditions. If the vehicle is mainly operated under severe driving
conditions as shown bel ...
