Description
COMPONENT DESCRIPTION
Air Mix Door Motor (Driver side)

DTC Logic

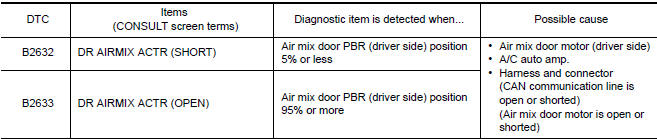

DTC DETECTION LOGIC
NOTE: If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC- 30, "DTC Logic" or HAC-31, "DTC Logic".

DTC CONFIRMATION PROCEDURE
1.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT
NOTE: If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010.
2.FUNCTION INSPECTION
Diagnosis Procedure
1.CHECK AIR MIX DOOR MOTOR (DRIVER SIDE) POWER SUPPLY

1 - Ground: Battery Voltage
2.CHECK SIGNAL FOR AIR MIX DOOR MOTOR (DRIVER SIDE)

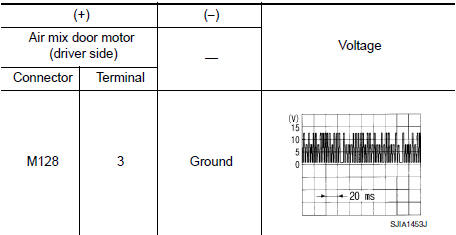

Check the output waveform (LAN signal) between air mix door motor (driver side) harness connector M128 terminal 3 and ground using an oscilloscope

3.CHECK AIR MIX DOOR MOTOR (DRIVER SIDE) GROUND CIRCUIT

2 - Ground: Continuity should exist.
