Nissan Maxima Service and Repair Manual: Wiring diagram

REAR SUNSHADE

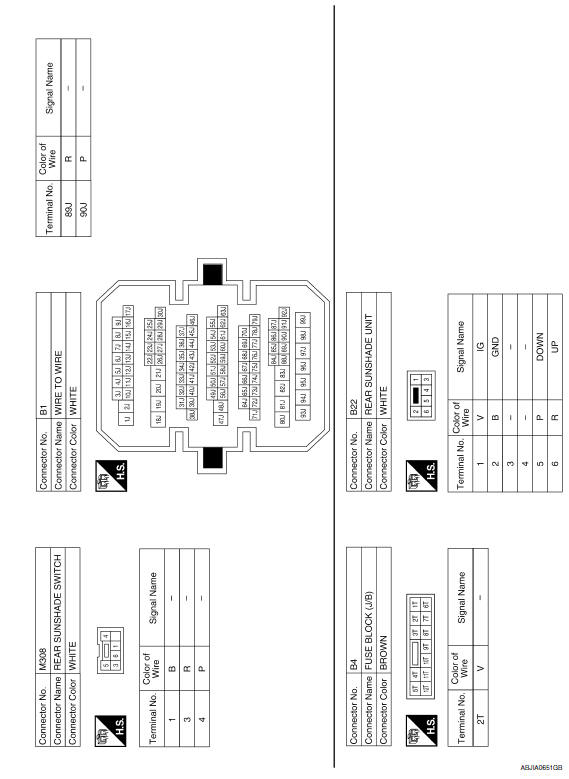

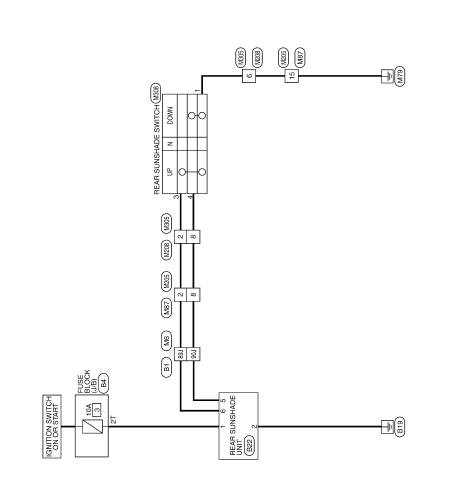

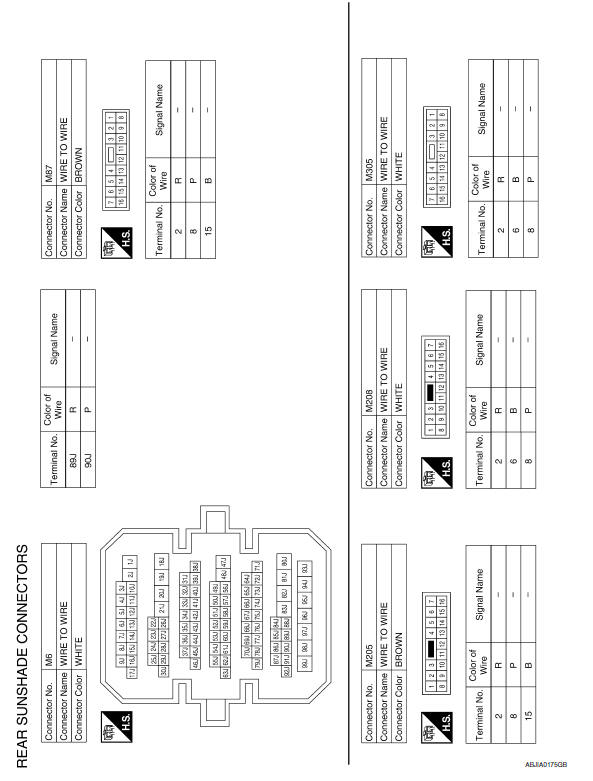

Wiring Diagram

Nissan Maxima. REAR SUNSHADE

Nissan Maxima. REAR SUNSHADE

Nissan Maxima. REAR SUNSHADE

    DTC/circuit diagnosis
    SUNSHADE Component Parts Location Rear sunshade unit B22 (View with the rear parcel shelf finisher removed) Rear sunshade switch M308 Reference Value ...

    Symptom diagnosis
    SQUEAK AND RATTLE TROUBLE DIAGNOSES Work Flow CUSTOMER INTERVIEW Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diagnostic Worksheet ...
