Nissan Maxima Service and Repair Manual: Standardized relay
Description

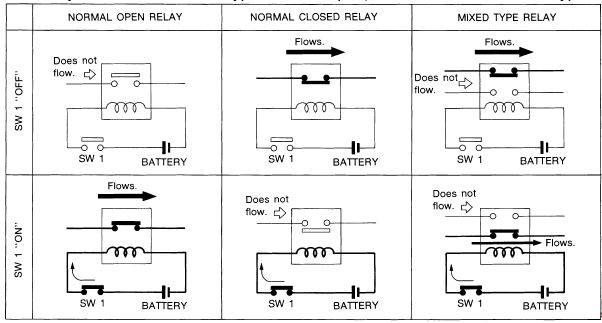

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays

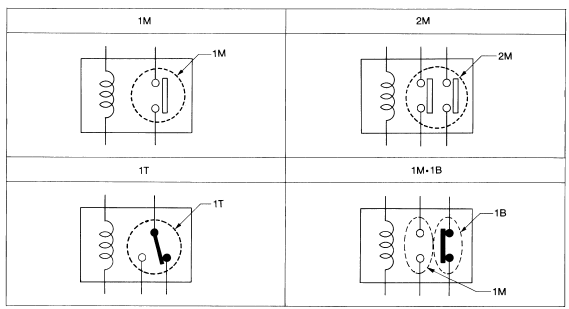

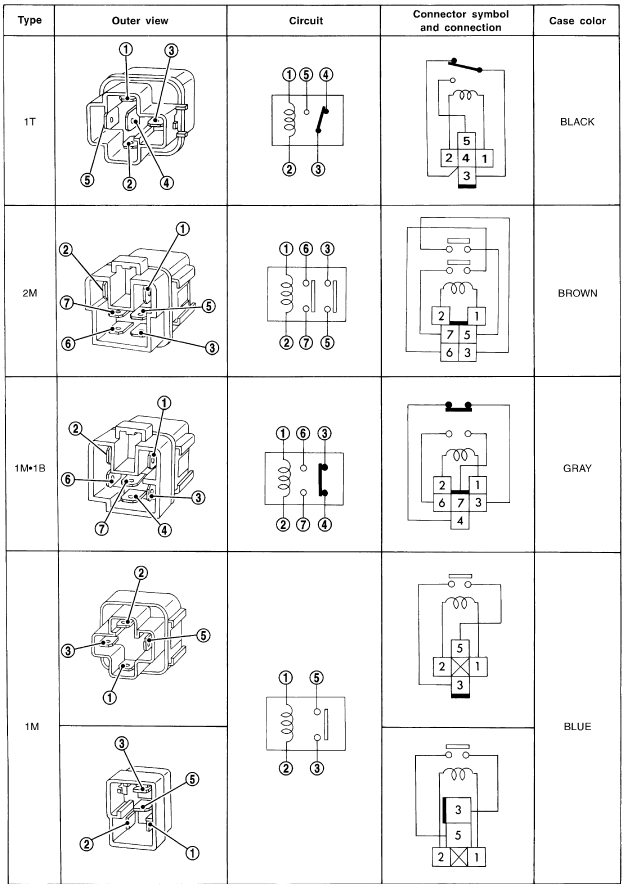

TYPE OF STANDARDIZED RELAYS
1M * 1 Make
2M * 2 Make
1T * 1 Transfer
1M*1B * 1 Make 1 Break
Harness connector
Description
HARNESS CONNECTOR (TAB-LOCKING TYPE)
The tab-locking type connectors help prevent accidental looseness
or disconnection.
The tab-locking type connectors are disconnected by pushi ...
Fuse block - junction box (J/B)
Terminal Arrangement
...
