Nissan Maxima Service and Repair Manual: Trunk open function symptoms
TRUNK LID OPENER SWITCH
TRUNK LID OPENER SWITCH : Symptom Table
TRUNK OPEN FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the following table, check
"WORK FLOW". Refer to DLK-9, "Work Flow".
- Check that vehicle is under the condition shown in "Conditions
of vehicle" before starting diagnosis, and
check each symptom.
- If the following symptoms are detected, check systems shown in
the "Diagnosis/service procedure" column
in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is out of key slot.
- All doors are closed.
![Nissan Maxima. TRUNK OPEN FUNCTION MALFUNCTION](/images/manuals/399/nissan_maxima_trunk_open_function_symptoms_4143.jpg)
TRUNK REQUEST SWITCH
TRUNK REQUEST SWITCH : Symptom Table
TRUNK OPEN FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the following table, check
"WORK FLOW". Refer to DLK-9, "Work Flow".
- Check that vehicle is under the condition shown in "Conditions
of vehicle" before starting diagnosis, and
check each symptom.
- If the following symptoms are detected, check systems shown in
the "Diagnosis/service procedure" column
in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is out of key slot.
- All doors are closed.
![Nissan Maxima. TRUNK OPEN FUNCTION MALFUNCTION](/images/manuals/399/nissan_maxima_trunk_open_function_symptoms_4144.jpg)

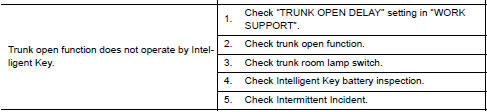

INTELLIGENT KEY
INTELLIGENT KEY : Symptom Table
TRUNK OPEN FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the following table, check
"WORK FLOW". Refer to DLK-9, "Work Flow".
- Check that vehicle is under the condition shown in "Conditions
of vehicle" before starting diagnosis, and
check each symptom.
- If the following symptoms" are detected, check systems shown in
the "Diagnosis/service procedure" column
in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is out of key slot
- All doors are closed.
![Nissan Maxima. TRUNK OPEN FUNCTION MALFUNCTION](/images/manuals/399/nissan_maxima_trunk_open_function_symptoms_4145.jpg)
DOOR LOCK AND UNLOCK SWITCH
DOOR LOCK AND UNLOCK SWITCH : Symptom Table
DOOR LOCK/UNLOCK FUNCTION MALFUNCTION
NOTE:
Before performing the diagnosis in the following table, check
"WORK FLOW". ...
Symptom Table
WARNING FUNCTION MALFUNCTION
NOTE:
Before performing the diagnosis in the following table, check
"WORK FLOW". Refer to DLK-9, "Work Flow".
Check that vehicle is und ...
