Nissan Maxima Service and Repair Manual: Clip list

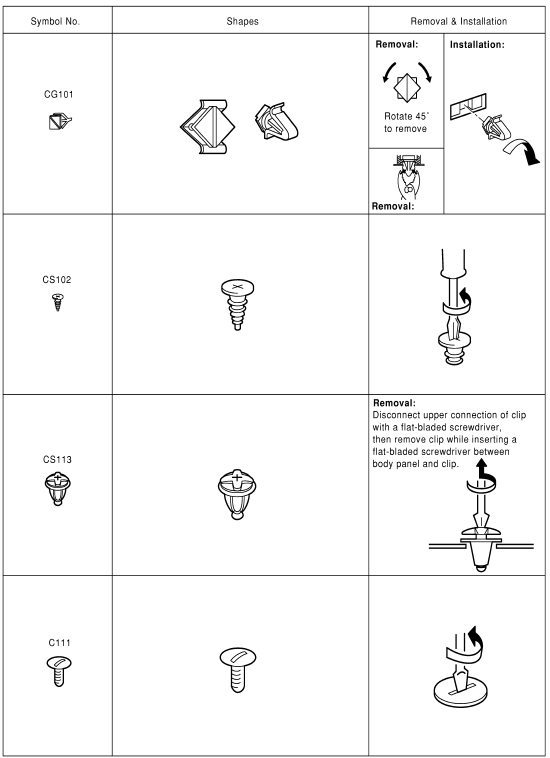

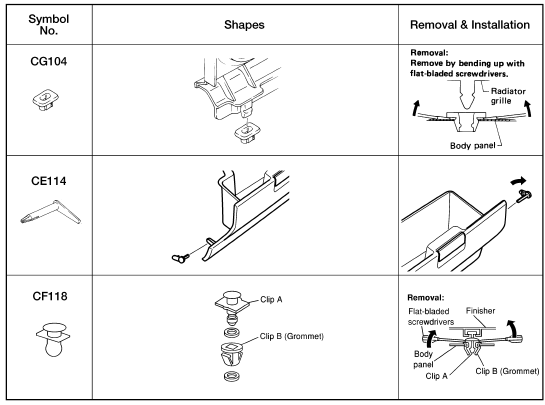

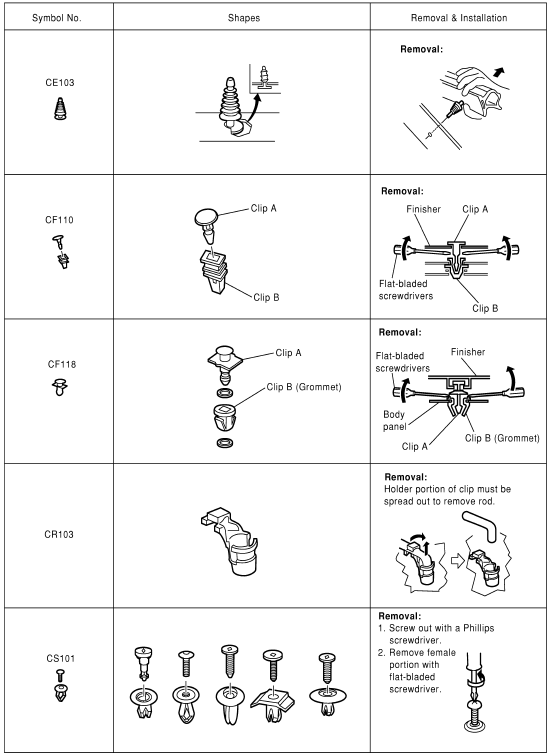

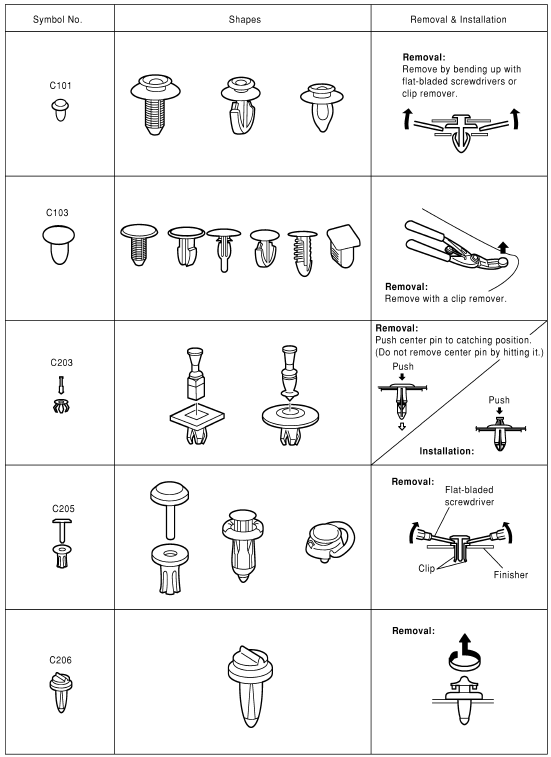

Descriptions for Clips
Replace any clips which are damaged during removal or installation
Preparation
Special Service Tool
The actual shapes of the tools may differ from those illustrated here.
Commercial Service Tools
...
