Description

Transmits trunk lid open signal to BCM.

Component Function Check

1. CHECK TRUNK LID OPENER CANCEL SWITCH

Check trunk lid opener cancel switch position.

2. CHECK FUNCTION

With CONSULT

Check trunk lid opener switch TR/BD OPEN SW in Data Monitor mode with CONSULT.

  • When trunk lid opener switch is turned to "ON".

Nissan Maxima. . CHECK FUNCTION

Diagnosis Procedure

1. CHECK TRUNK LID OPEN INPUT SIGNAL

  1. Remove Intelligent Key from key slot.
  2. Turn on trunk lid opener cancel switch.

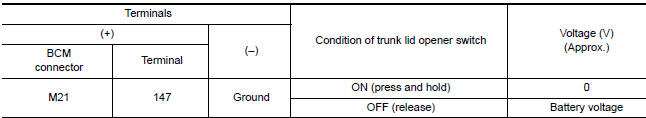

  3. Check voltage between BCM connector and ground.

Nissan Maxima. CHECK TRUNK LID OPEN INPUT SIGNAL

2. CHECK TRUNK LID OPENER SWITCH CIRCUIT

Nissan Maxima. CHECK TRUNK LID OPENER SWITCH CIRCUIT

  1. Disconnect BCM connector
  2. Check continuity between BCM connector and trunk lid opener switch connector.
  3. Check continuity between BCM connector and ground.

Nissan Maxima. CHECK TRUNK LID OPENER SWITCH CIRCUIT

Nissan Maxima. CHECK TRUNK LID OPENER SWITCH CIRCUIT

3. CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT

Nissan Maxima. CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT

Check continuity between trunk lid opener switch connector and ground.

Nissan Maxima. CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT

4. CHECK TRUNK LID OPENER SWITCH

5. CHECK INTERMITTENT INCIDENT

Component Inspection

1. CHECK TRUNK LID OPENER SWITCH

Nissan Maxima. CHECK TRUNK LID OPENER SWITCH

  1. Turn ignition switch OFF.
  2. Disconnect trunk lid opener switch connector.

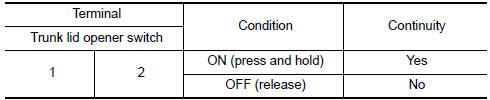

  3. Check continuity between trunk lid opener switch connector.
    Unlock sensor
    Description Detects door lock condition of driver door. Component Function Check 1. CHECK FUNCTION With CONSULT Check unlock sensor UNLK SEN−DR in "Data Monitor" mode. Diagnosis Proc ...

    Trunk lid opener cancel switch
    Description Cancels trunk lid open operation. Component Function Check 1. CHECK FUNCTION With CONSULT Check trunk lid opener cancel switch TR CANCEL SW in Data Monitor mode with CONSULT. ...
