Description

Cancels trunk lid open operation.

Component Function Check

1. CHECK FUNCTION

With CONSULT

Check trunk lid opener cancel switch TR CANCEL SW in Data Monitor mode with CONSULT.

Nissan Maxima. CHECK FUNCTION

Diagnosis Procedure

1. CHECK TRUNK LID OPENER CANCEL SIGNAL

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SIGNAL

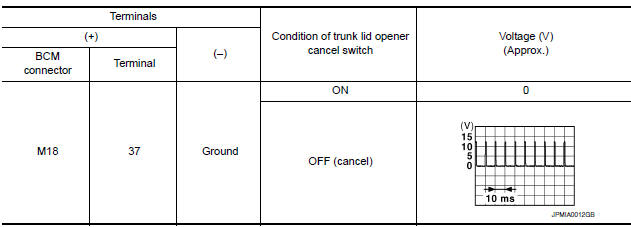

Check voltage between BCM connector and ground.

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SIGNAL

2. CHECK TRUNK LID OPENER CANCEL SWITCH CIRCUIT

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH CIRCUIT

  1. Disconnect BCM connector.
  2. Check continuity between BCM connector and trunk lid opener cancel switch connector
  3. Check continuity between BCM connector and ground.

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH CIRCUIT

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH CIRCUIT

3. CHECK TRUNK LID OPENER CANCEL SWITCH GROUND CIRCUIT

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH GROUND CIRCUIT

Check continuity between trunk lid opener switch connector and ground

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH GROUND CIRCUIT

4. CHECK TRUNK LID OPENER CANCEL SWITCH

5. CHECK INTERMITTENT INCIDENT

Component Inspection

1. CHECK TRUNK LID OPENER CANCEL SWITCH

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH

  1. Disconnect trunk lid opener cancel switch connector.

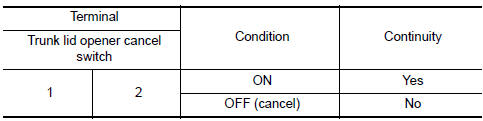

  2. Check continuity between trunk lid opener cancel switch terminals.

Nissan Maxima. CHECK TRUNK LID OPENER CANCEL SWITCH

    Trunk lid opener switch
    Description Transmits trunk lid open signal to BCM. Component Function Check 1. CHECK TRUNK LID OPENER CANCEL SWITCH Check trunk lid opener cancel switch position. 2. CHECK FUNCTION With CONSU ...

    Trunk lamp switch
    Description Detects trunk open/close condition. Component Function Check 1. CHECK FUNCTION With CONSULT Check TRNK/HAT MNTR in Data Monitor mode with CONSULT. Diagnosis Procedure ...
