Nissan Maxima Service and Repair Manual: B2193 chain of ECM-IMMU

Description

BCM performs the ID verification with ECM that allows the engine to start. Start the engine if the ID is OK.

ECM prevents the engine from starting if the ID is not registered. BCM starts the communication with ECM if ignition switch is turned ON.

DTC Logic

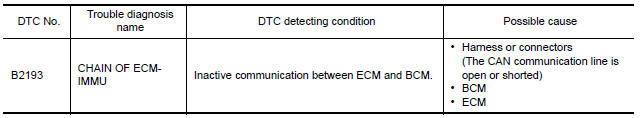

DTC DETECTION LOGIC

NOTE:

  • If DTC B2193 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-29, "DTC Logic".

  • If DTC B2193 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-30, "DTC Logic".

DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

  1.  Turn ignition switch ON under the following conditions:

    •  CVT selector lever is in the P or N position.

    •  Do not depress brake pedal.

  2.  Check "Self Diagnostic Result" with CONSULT.

Diagnosis Procedure

1.REPLACE BCM

  1.  Replace BCM. Refer to BCS-79, "Removal and Installation".

  2.  Perform initialization with CONSULT.

For initialization, refer to CONSULT Immobilizer mode and follow the on-screen instructions.

    B2192 ID discord, IMMU-ECM
    Description BCM performs the ID verification with ECM that allows the engine to start. Start the engine if the ID is OK. ECM prevents the engine from starting if the ID is not registered. BCM st ...

    B2555 stop lamp
    Description BCM detects the stop lamp status and confirms the stop lamp switch ON/OFF status. BCM confirms the engine start condition according to the stop lamp switch ON/OFF status. DTC Logic ...
