Nissan Maxima Service and Repair Manual: Power window lock switch
Component Function Check
1. CHECK POWER WINDOW LOCK
Activate the power window lock switch and verify that the front power window RH, rear power window LH and rear power window RH are inoperative.
Component Inspection
1. CHECK POWER WINDOW LOCK SWITCH
- Disconnect main power window and door lock/unlock switch connectors.

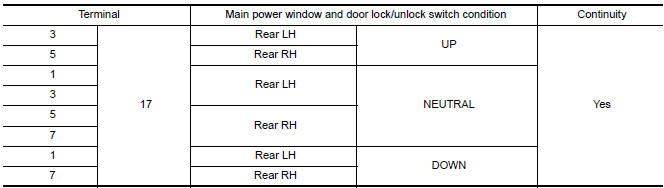

- Check continuity between main power window and door lock/unlock switch (lock operation).

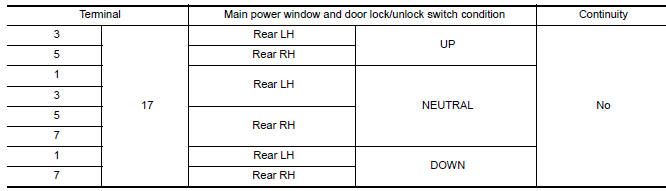

- Check continuity between main power window and door lock/unlock switch (unlock operation).
Special Repair Requirement
1. PERFORM INITIALIZATION PROCEDURE
Perform initialization procedure.
2. CHECK ANTI-PINCH OPERATION
Check anti-pinch operation
Power window serial link
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH : Description
Main power window and door lock/unlock switch, power window and door
lock/unlock switch RH and BCM
communicate via the power ...
