Description

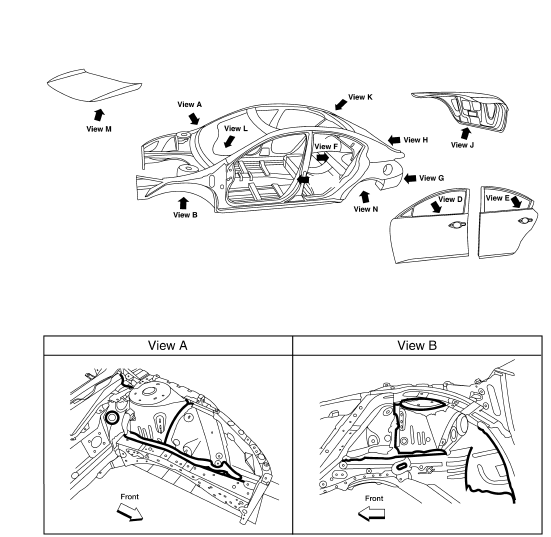

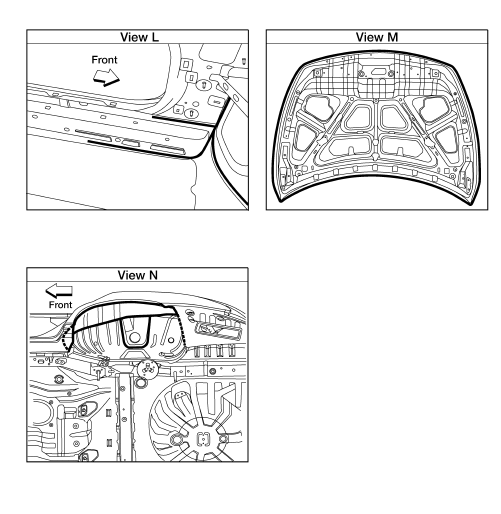

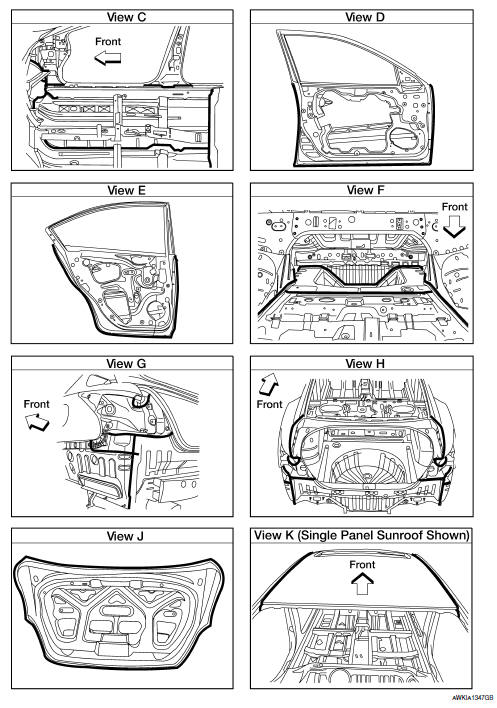

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant and not to allow other unaffected parts to come into contact with the sealant.



Corrosion protection
Body constructionShift position indicator circuit
Description
TCM sends position indicator signals to
combination meter via CAN communication line.
The selector lever position is indicated on the
shift position indicator.
Component Function Check
1.CHECK SHIFT POSITION INDICATOR
CAUTION:
Always drive vehic ...
Front fog lamp aiming adjustment
Description
PREPARATION BEFORE ADJUSTING
NOTE: For details, refer to the regulations
in your area.
Before performing aiming adjustment, check the following.
Adjust the tire pressure to specification.
Position vehicle and screen on level surface.
Ensure there is no load in vehicle other ...
Subwoofer
Description
The AV control unit sends audio signals to the subwoofer amp. The subwoofer
amp. amplifies the audio signals before sending them to the subwoofers using
the audio signal circuits.
Diagnosis Procedure
1.CONNECTOR CHECK
Check the AV control unit, subwoofer amp. and subwoofer connec ...
