Nissan Maxima Service and Repair Manual: Diagnosis system (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITE

APPLICATION ITEM

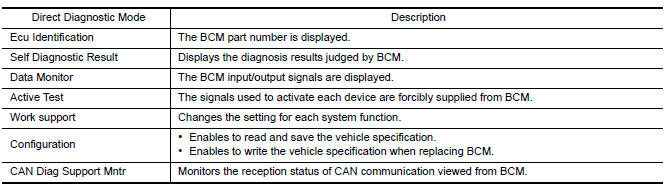

CONSULT performs the following functions via CAN communication with BC

Nissan Maxima. APPLICATION ITEM

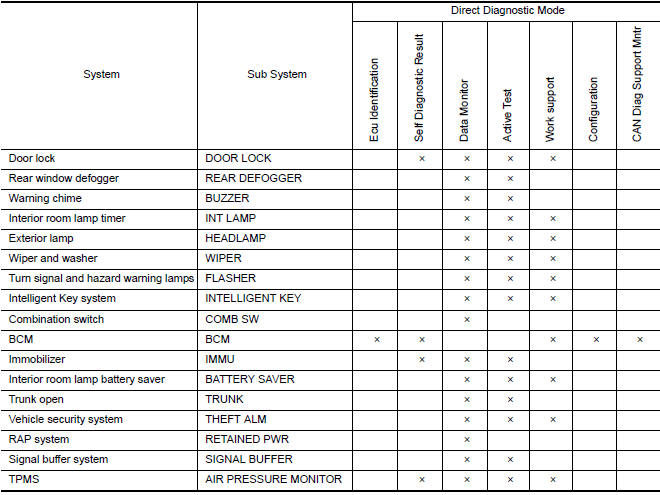

SYSTEM APPLICATION

BCM can perform the following functions.

Nissan Maxima. SYSTEM APPLICATION

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

DATA MONITOR

Nissan Maxima. DATA MONITOR

ACTIVE TEST

Nissan Maxima. ACTIVE TEST

WORK SUPPORT

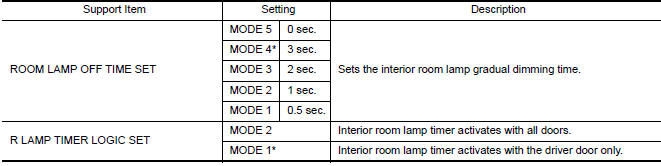

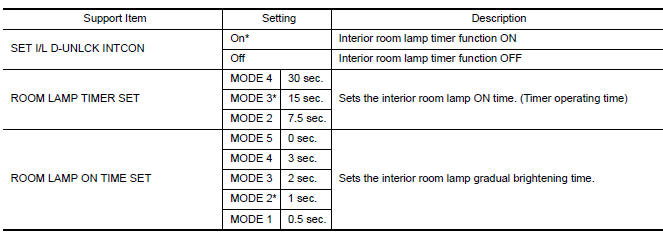

Nissan Maxima. WORK SUPPORT

Nissan Maxima. WORK SUPPORT

* : Initial setting

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

DATA MONITOR

Nissan Maxima. DATA MONITOR

ACTIVE TEST

Nissan Maxima. ACTIVE TEST

WORK SUPPORT

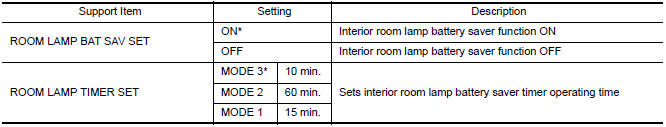

Nissan Maxima. WORK SUPPORT

Nissan Maxima. WORK SUPPORT

* : Initial setting

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

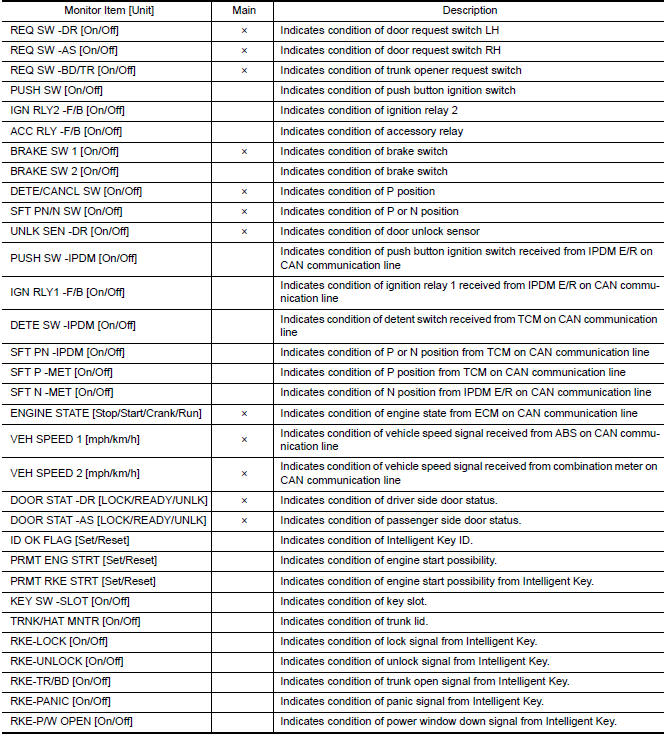

DATA MONITOR

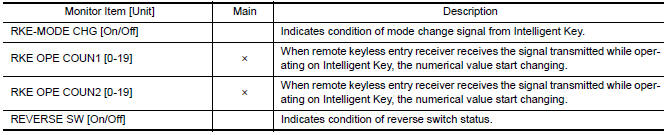

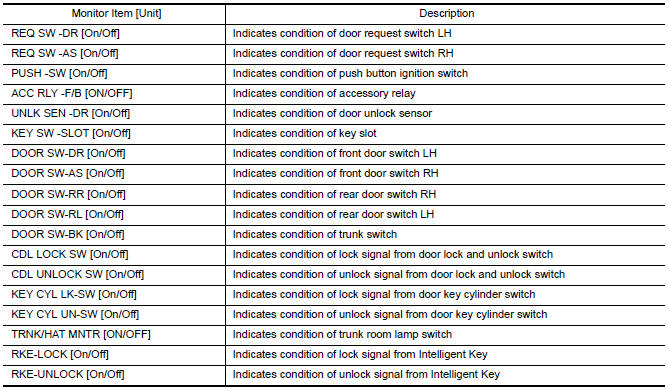

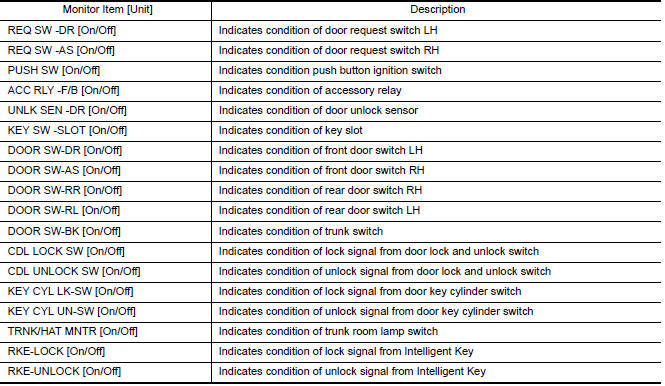

Nissan Maxima. DATA MONITOR

Nissan Maxima. DATA MONITOR

ACTIVE TEST

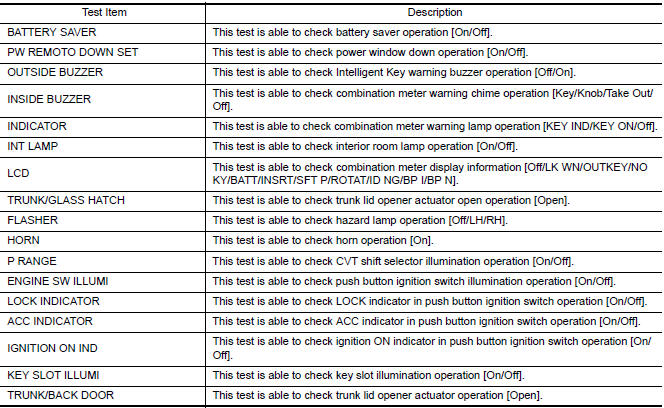

Nissan Maxima. ACTIVE TEST

WORK SUPPORT

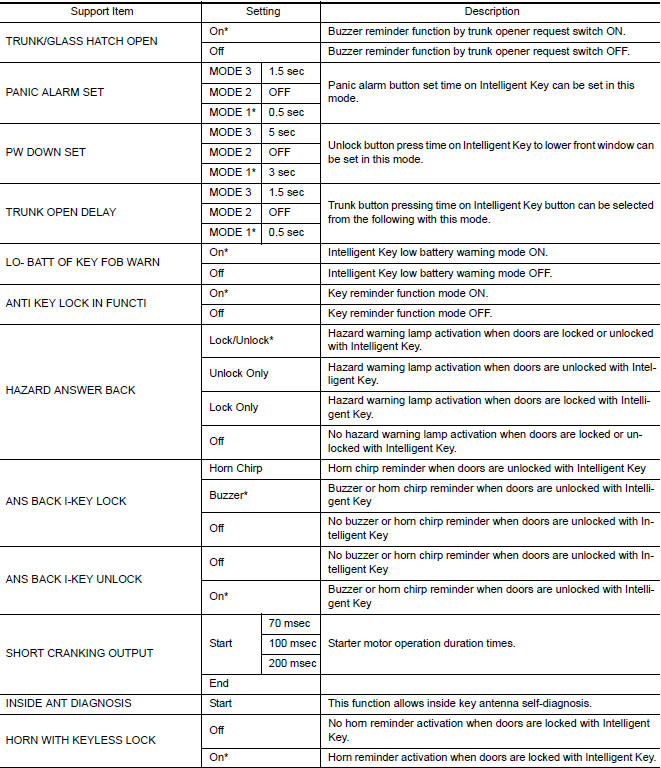

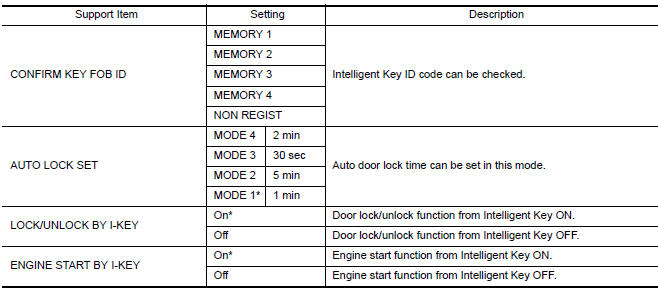

Nissan Maxima. WORK SUPPORT

Nissan Maxima. WORK SUPPORT

*: Initial Setting
