Nissan Maxima Service and Repair Manual: Washer switch
Description

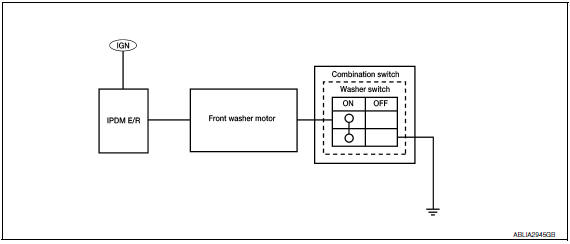

- Washer switch is integrated with combination switch (wiper and washer switch).
- Combination switch (wiper and washer switch) supplies ground and fuse #
38 from the IPEM E/R supplies
power for the front washer motor to operate.
Component Inspection
1. CHECK WASHER SWITCH
- Turn the ignition switch OFF.
- Disconnect combination switch (wiper and washer switch).

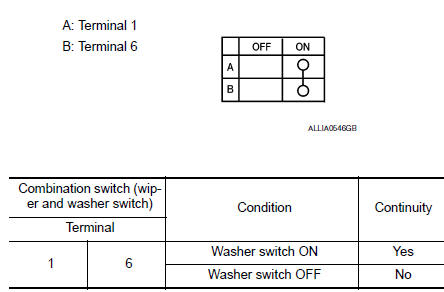

- Check continuity between the combination switch (wiper and washer switch) terminals.
Front wiper motor ground circuit
Diagnosis Procedure
1.CHECK FRONT WIPER MOTOR (GND) OPEN CIRCUIT
Turn the ignition switch OFF.
Disconnect front wiper motor.
Check continuity between front wiper motor harness connector
...
Washer motor circuit
Diagnosis Procedure
1. CHECK FRONT WASHER MOTOR FUSE
Turn the ignition switch OFF.
Check that the following fuse is not blown.
2. CHECK FRONT WASHER MOTOR POWER SUPPLY
Disconnect fro ...
