Reference Value

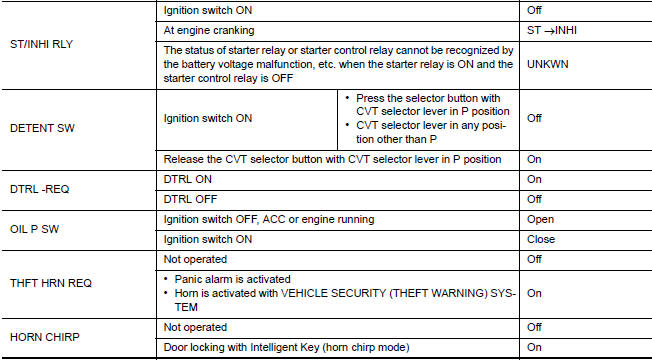

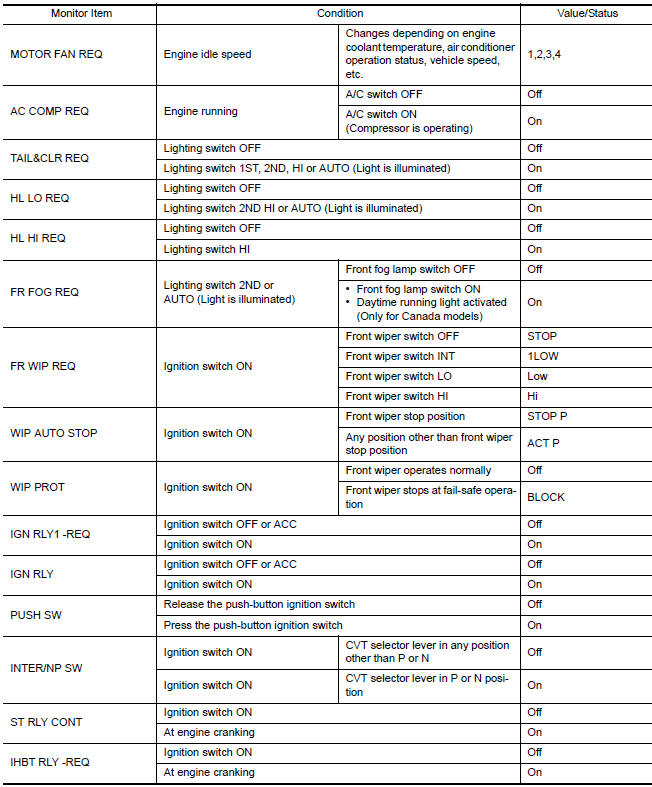

VALUES ON THE DIAGNOSIS TOOL

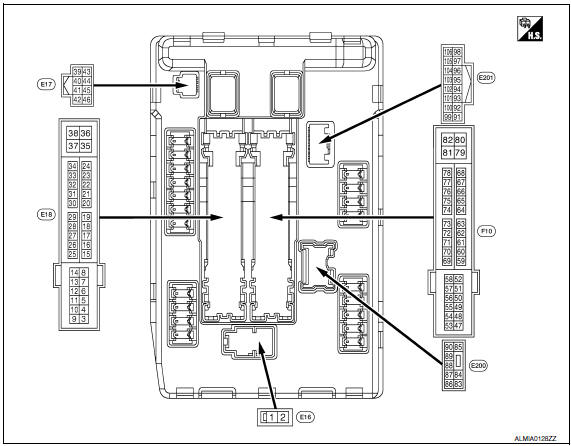

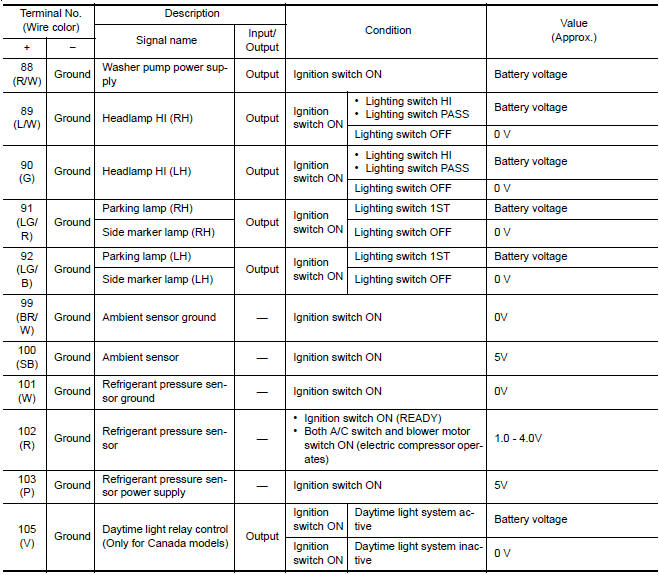

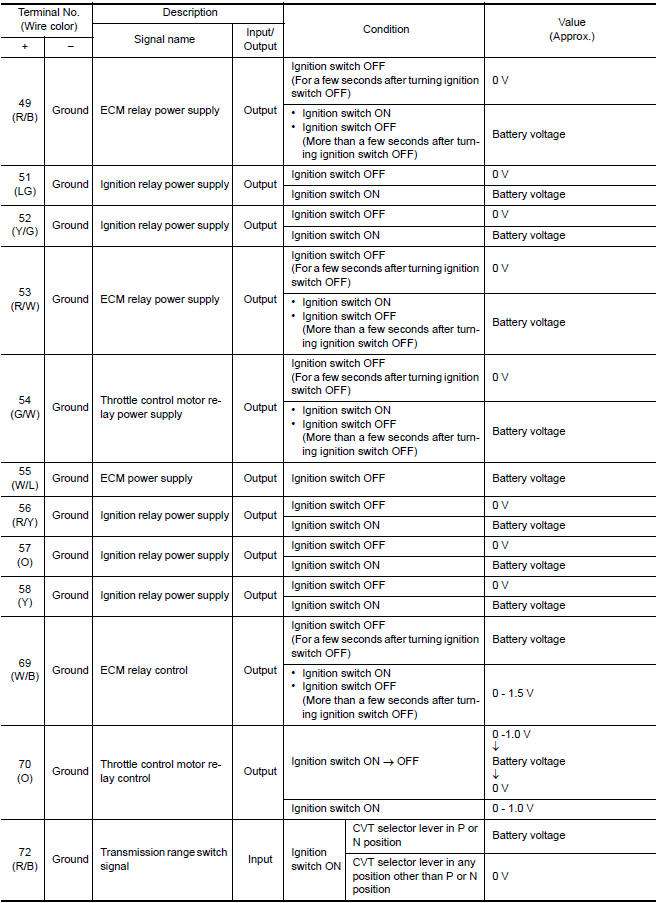

TERMINAL LAYOUT

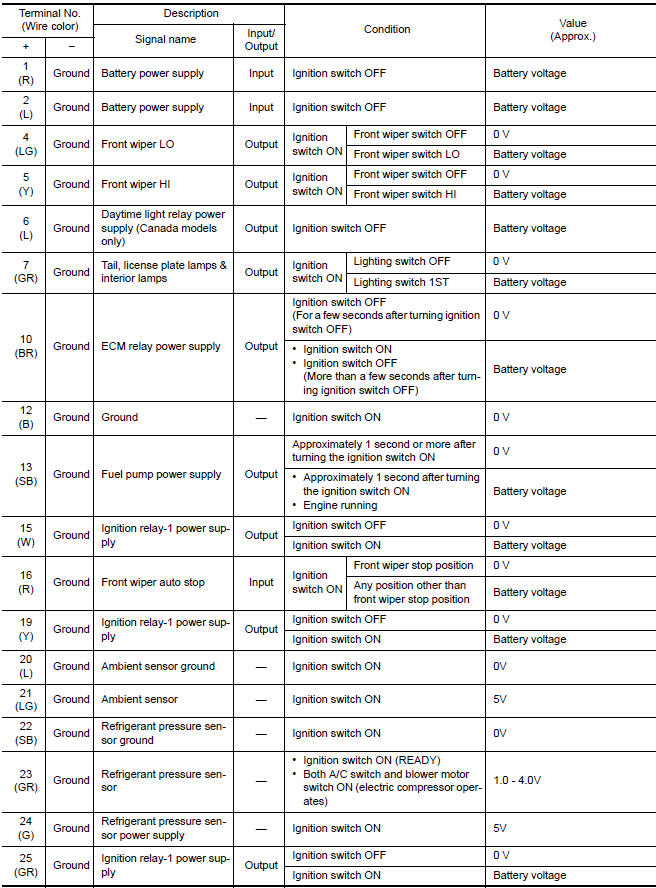

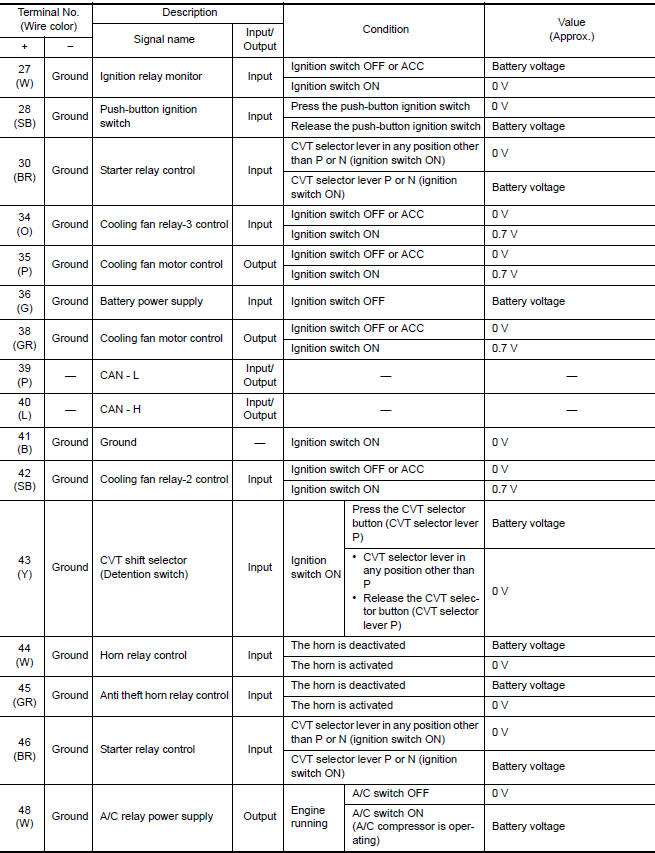

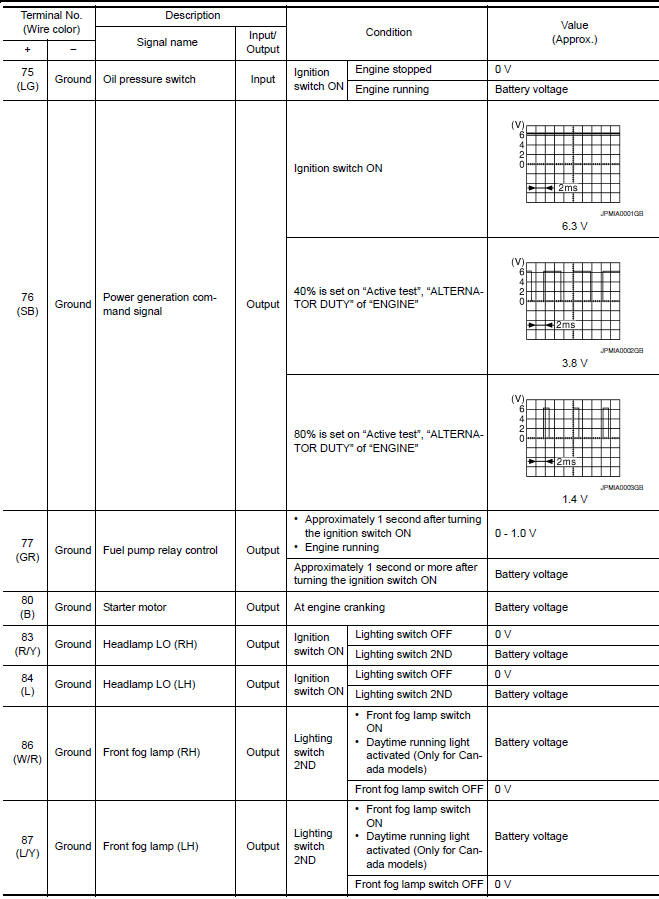

PHYSICAL VALUES





Fail Safe

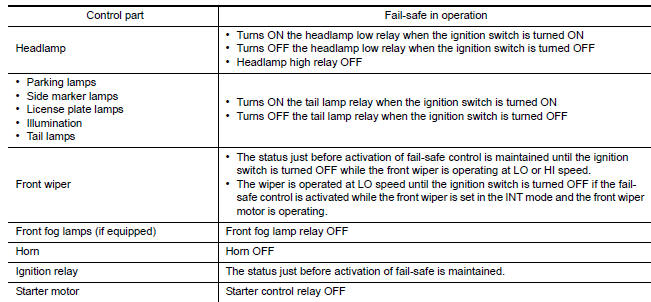

CAN COMMUNICATION CONTROL
When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN communication recovers normally, it also returns to normal control.

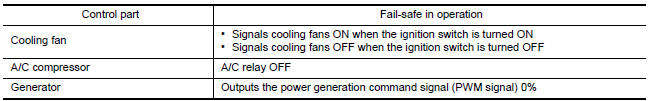

If No CAN Communication Is Available With ECM

If No CAN Communication Is Available With BCM

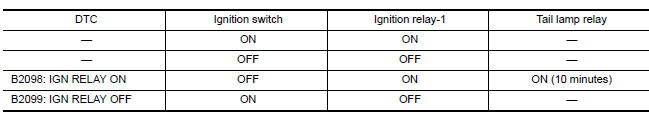

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

NOTE: The tail lamp turns OFF when the ignition switch is turned ON.
FRONT WIPER CONTROL
IPDM E/R detects front wiper stop position by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper after repeating a front wiper 10 seconds activation and 20 seconds stop five times.

NOTE: This operation status can be confirmed on the IPDM E/R "Data Monitor" that displays "BLOCK" for the item "WIP PROT" while the wiper is stopped.
STARTER MOTOR PROTECTION FUNCTION
IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains active for 90 seconds.

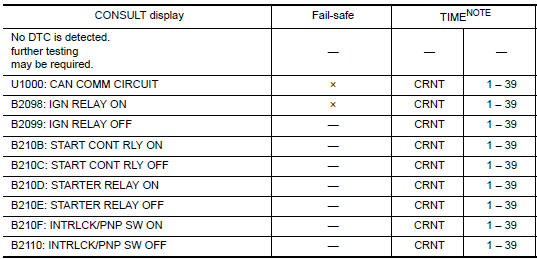

DTC Index

NOTE: The details of TIME display are as follows.
