SERVICE DATA AND SPECIFICATIONS (SDS)

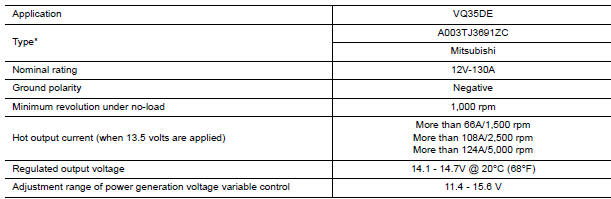

Generator
*: Always check with the Parts Department for the latest parts information
Removal and installation
GENERATOR
Exploded View
-3 Tightening order
Generator
B terminal nut
Generator bracket
Front
Removal and Installation
REMOVAL
Remove hoodledge covers (LH/RH).
Remove co ...
