Nissan Maxima Service and Repair Manual: Wiring diagram

MONOCHROME DISPLAY

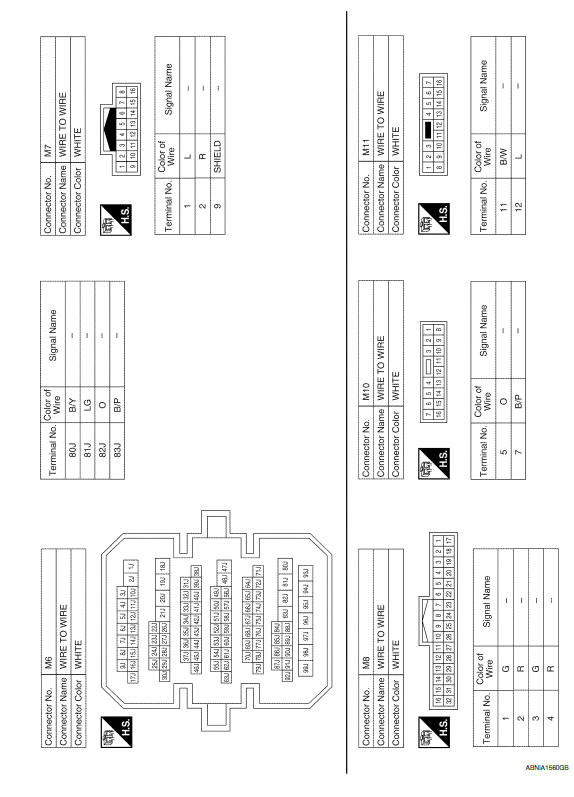

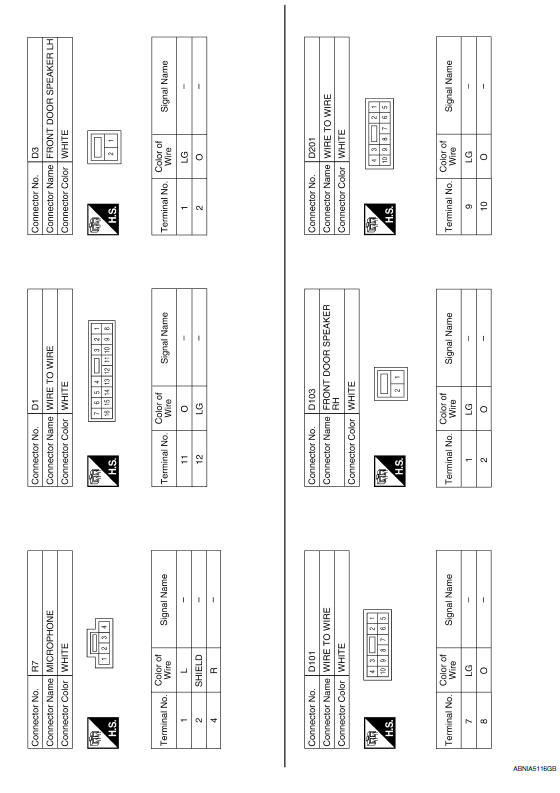

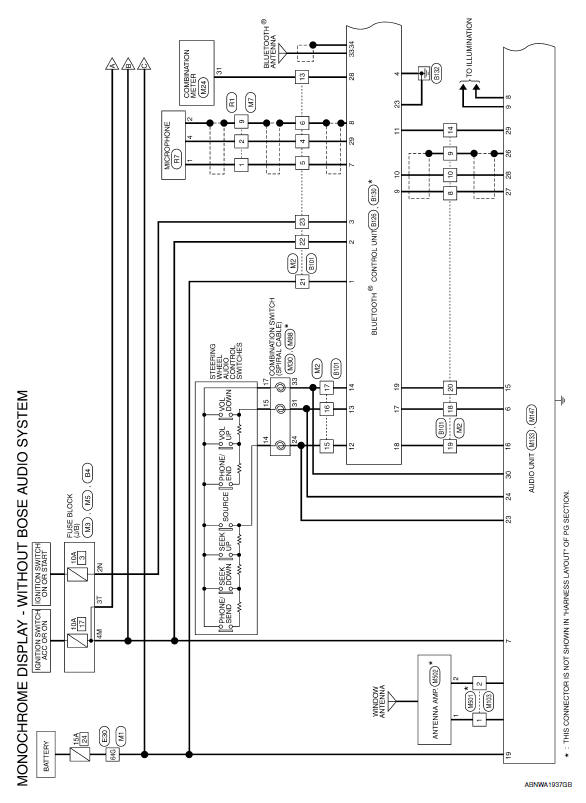

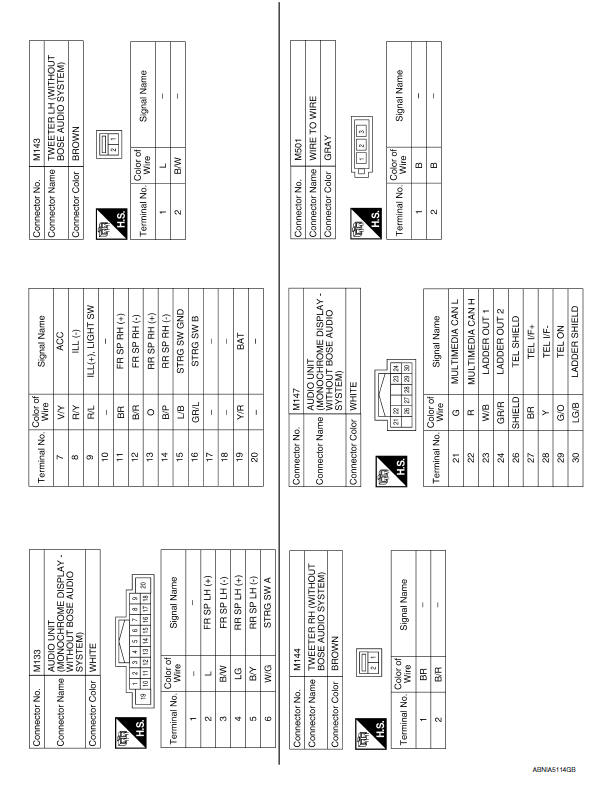

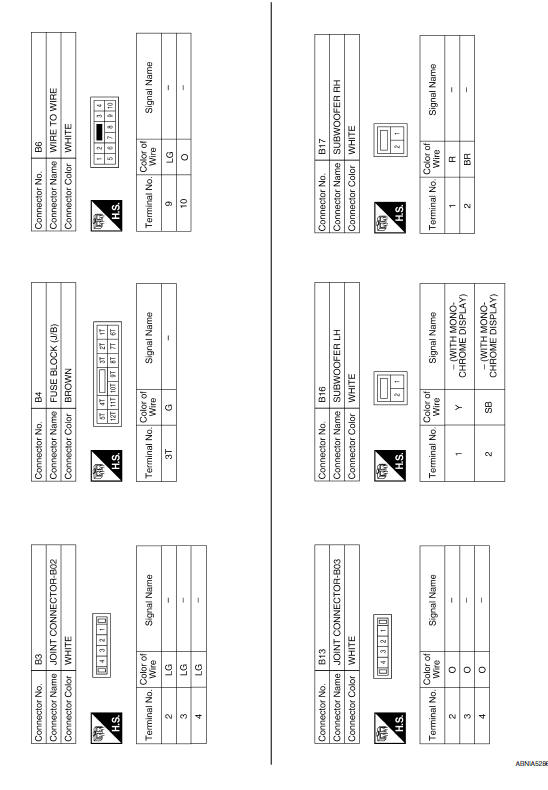

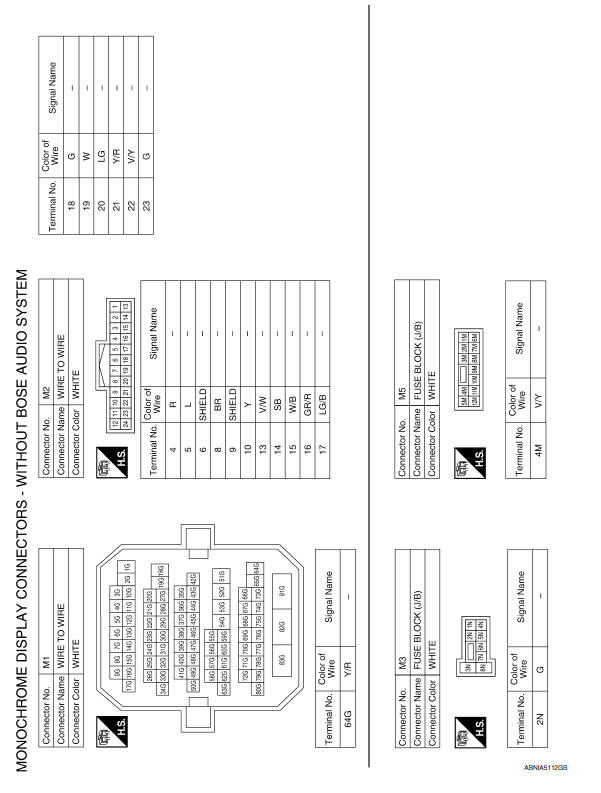

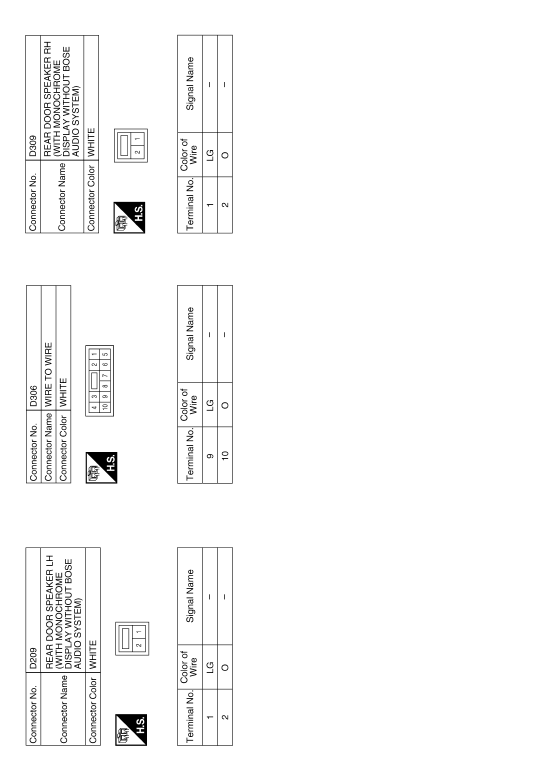

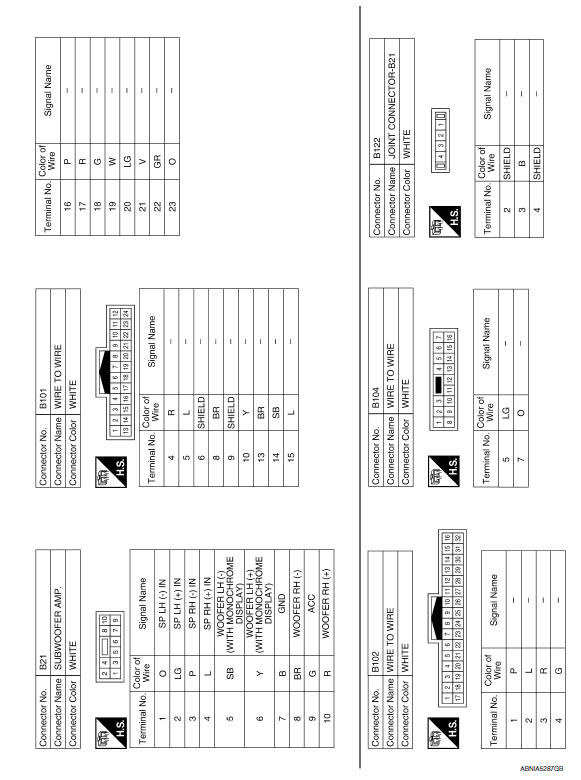

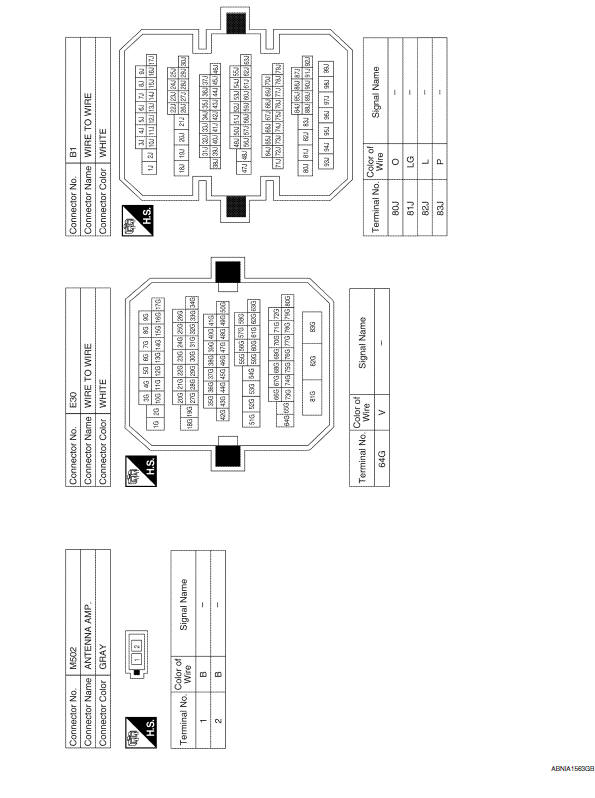

Wiring Diagram - Without BOSE Audio system

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

Nissan Maxima. MONOCHROME DISPLAY

    Bluetooth control unit
