Nissan Maxima Service and Repair Manual: Subwoofer
Removal and Installation

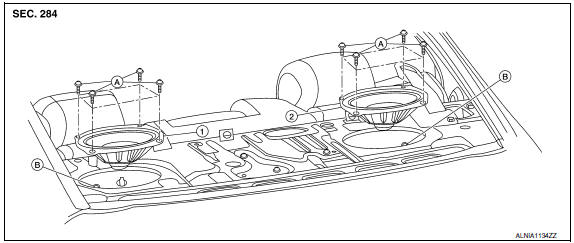

- Subwoofer (LH)
- Subwoofer (RH)
- Subwoofer screws
- Subwoofer connectors
REMOVAL
- Remove the rear parcel shelf finisher. Refer to INT-28, "Removal and Installation".
- Remove the subwoofer screws.
- Pull out the subwoofer, disconnect the harness connector from the subwoofer and remove.
INSTALLATION
Installation is in the reverse order of removal.
Rear door speaker
Removal and Installation
REMOVAL
Remove the rear door finisher. Refer to INT-21, "Removal and
Installation".
Remove the rear door speaker screws (A).
Disconnect the harness connector (B) ...
Subwoofer AMP
Removal and Installation
Subwoofer amp. and bracket
Subwoofer amp. bracket screws
REMOVAL
Disconnect the battery negative terminal. Refer to PG-67, "Removal
and Installation (Batt ...
