Description

The AV control unit sends audio signals to the tweeters using the front door speaker circuits.

Diagnosis Procedure

1.CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

  • Proper connection
  • Damage
  • Disconnected or loose terminals

2.HARNESS CHECK

Nissan Maxima. HARNESS CHECK

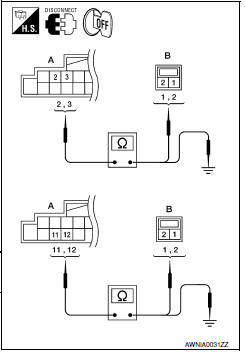

  1. Disconnect AV control unit connector M115 (A) and suspect tweeter connector (B).

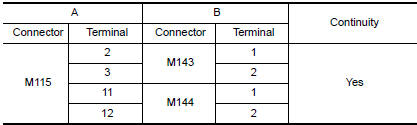

  2. Check continuity between AV control unit harness connector M115 (A) and suspect tweeter harness connector (B).

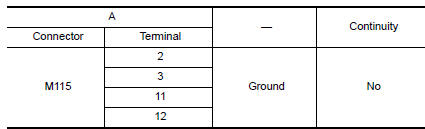

  3. Check continuity between AV control unit harness connector M115 (A) and ground.

Nissan Maxima. HARNESS CHECK

Nissan Maxima. HARNESS CHECK

3.TWEETER SIGNAL CHECK

Nissan Maxima. TWEETER SIGNAL CHECK

  1. Connect AV control unit connector and tweeter connector.
  2. Turn ignition switch to ACC.
  3. Push POWER switch.

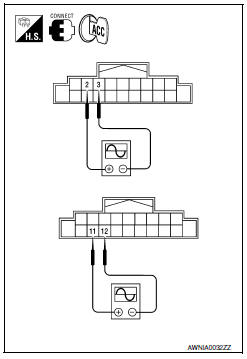

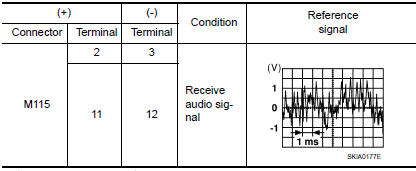

  4. Check the signal between AV control unit harness connector terminals with CONSULT or oscilloscope.

Nissan Maxima. TWEETER SIGNAL CHECK
