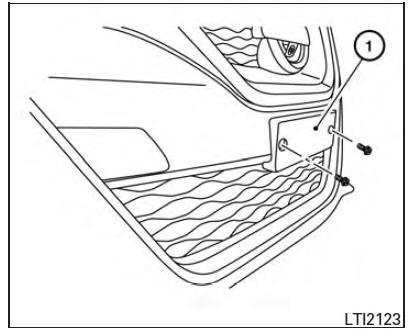

Use the following steps to mount the front license plate: 1. Make holes on the plastic finisher at the location mark (small dimple) using a 5 mm (0.20 in) drill. Apply light pressure to the drill.
Install the license plate holder using the two screws provided with the holder.
2. Mount license plate 1 using two M6- 14mm bolts.
License plate bolt tightening torque: 5.74 N*m (4.0 ft-lb)
Emission control information label
Vehicle loading informationB2581, B2582 intake sensor
Description
Intake Sensor
The intake sensor is located on the evaporator.
It converts air temperature after it passes through the evaporator
into a resistance value which is then input to the A/C auto amp.
Intake Sensor Circuit
DTC Logic
DTC DETECTION LOGIC
NOTE:
If DTC is di ...
RGB (R: red) signal circuit
Description
Transmit the image displayed with AV control unit with RGB signal to the
display unit.
Diagnosis Procedure
1.CHECK CONTINUITY RGB (R: RED) SIGNAL CIRCUIT
Turn ignition switch OFF.
Disconnect display unit connector M141 and AV control unit
connector
M154.
Check cont ...
System description
HEATED STEERING WHEEL
System Diagram
System Description
The heated steering wheel switch controls the heated steering relay. When the
switch is turned on, the relay is energized and the heated steering system
will operate. The heated steering system will turn off when the steering
wheel ...
