Removal and Installation

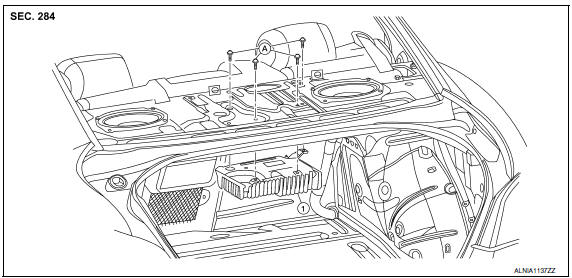

REMOVAL
NOTE: If removing the BOSE speaker amp. bracket, it is necessary to remove the parcel shelf finisher. The BOSE speaker amp. can be removed without removing the BOSE speaker amp. bracket.
INSTALLATION
Installation is in the reverse order of removal.
Diagnosis and repair workflow
Work Flow
OVERALL SEQUENCE
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the
condition and the environment when
the incident/malfunction occurred).
2.CHECK DTC WITH BCM AND IPDM E/R
Check "Self Diagnostic Result" with CONSULT.
Perform ...
Sunglasses holder
To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver's
view and to help prevent an accident.
CAUTION
Do not use for anything other than
sunglasses.
...
Front door speaker
Description
The audio unit sends audio signals to the BOSE speaker amp. The BOSE speaker
amp. amplifies the audio signals before sending them to the front door
speakers using the audio signal circuits.
Diagnosis Procedure
1.CONNECTOR CHECK
Check the audio unit, BOSE speaker amp. and speaker ...
