Nissan Maxima Service and Repair Manual: AV control unit
Reference Value
VALUES ON THE DIAGNOSIS TOOL

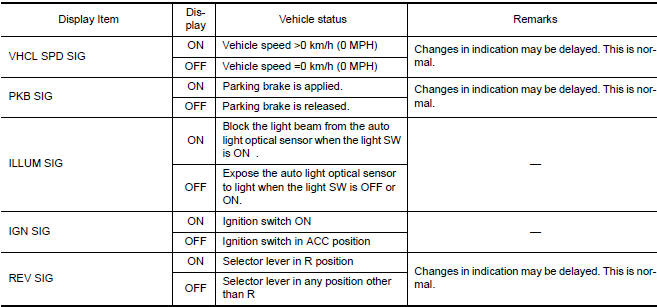

CONSULT data monitor item

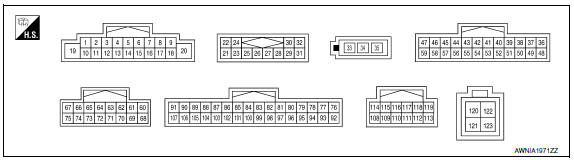

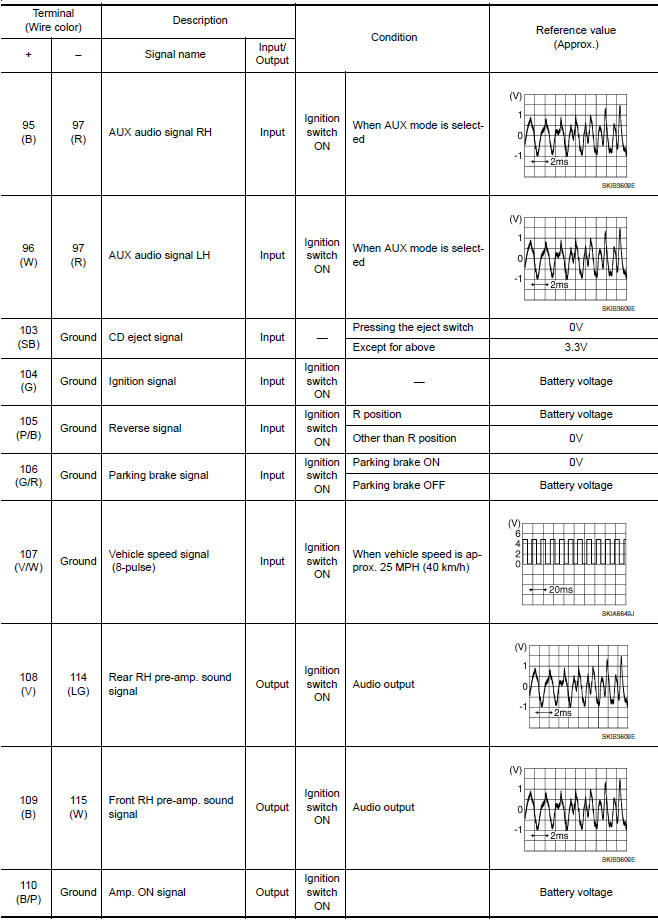

TERMINAL LAYOUT

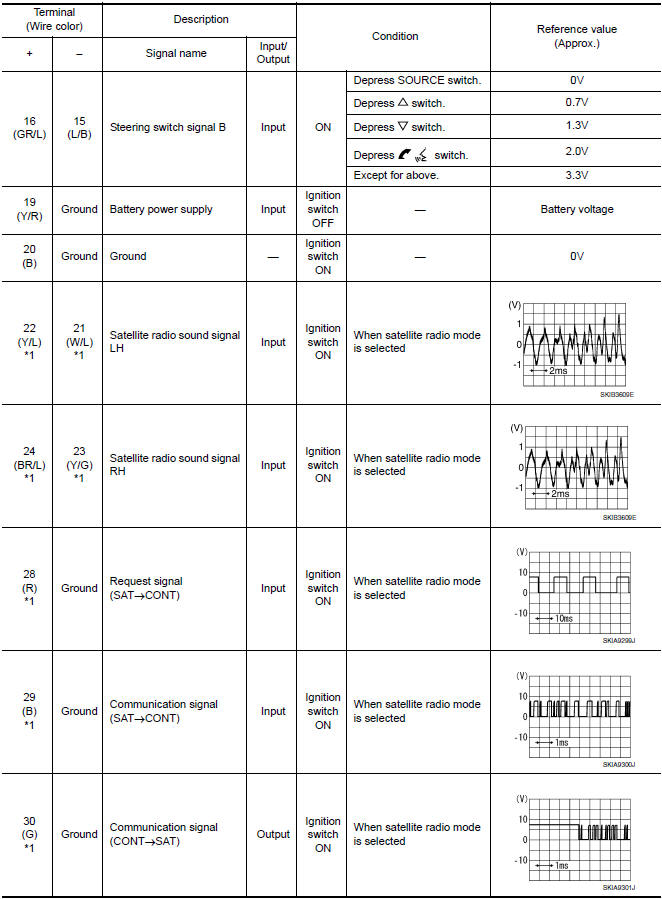

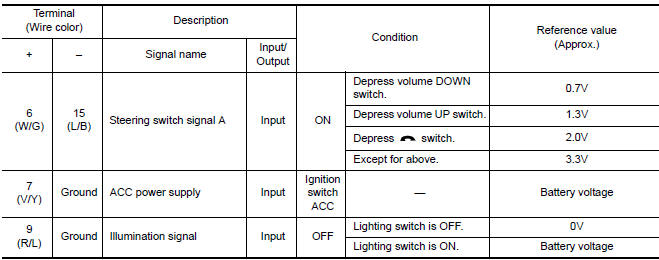

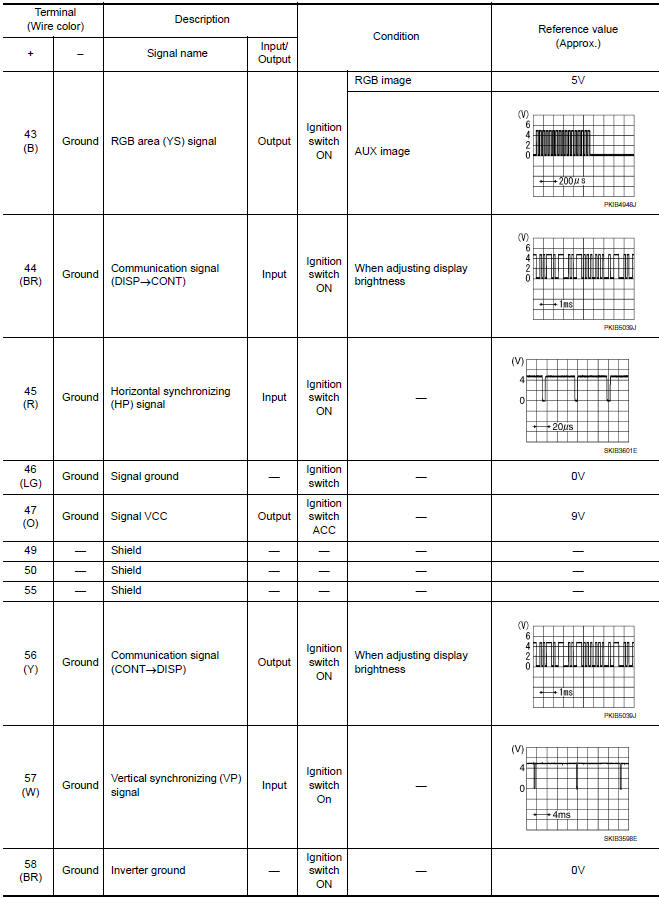

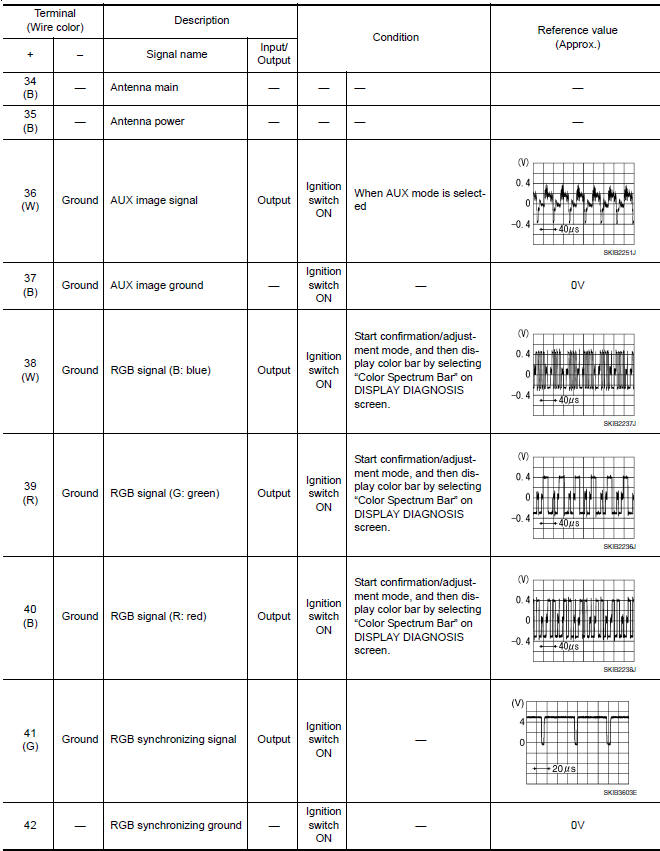

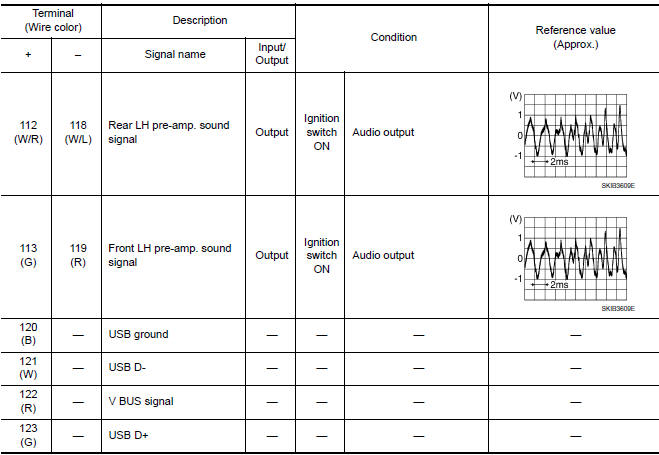

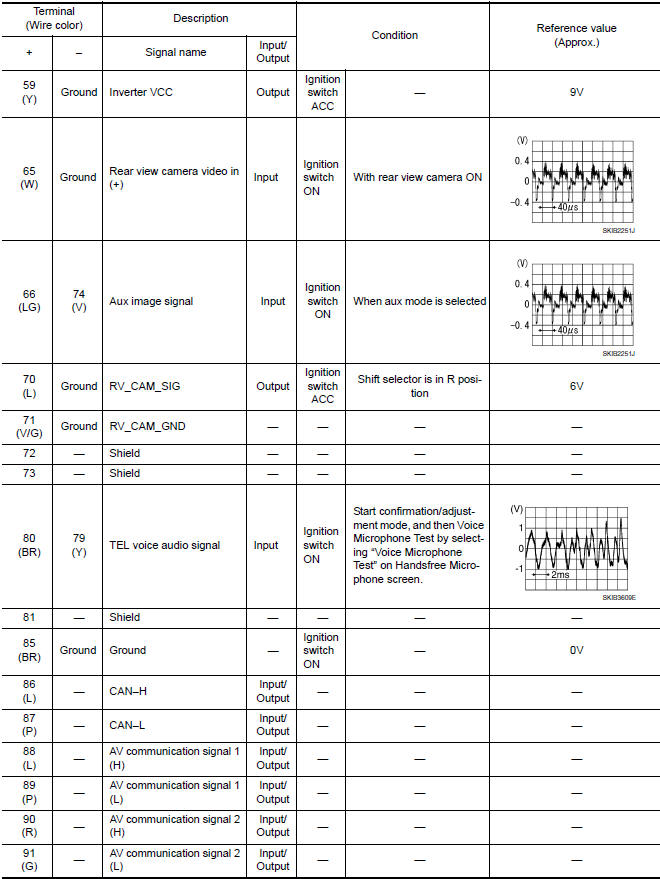

PHYSICAL VALUES
*1 With satellite radio

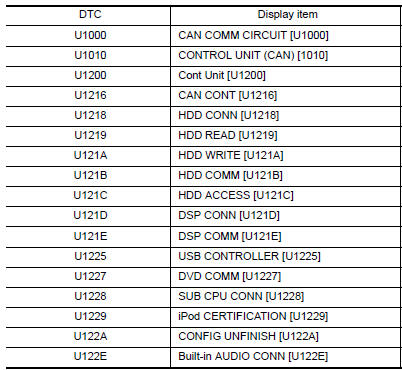

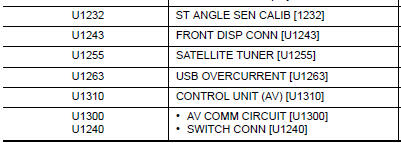

DTC Index
Self-diagnosis results display item
Display unit
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
...
