FOR USA AND CANADA

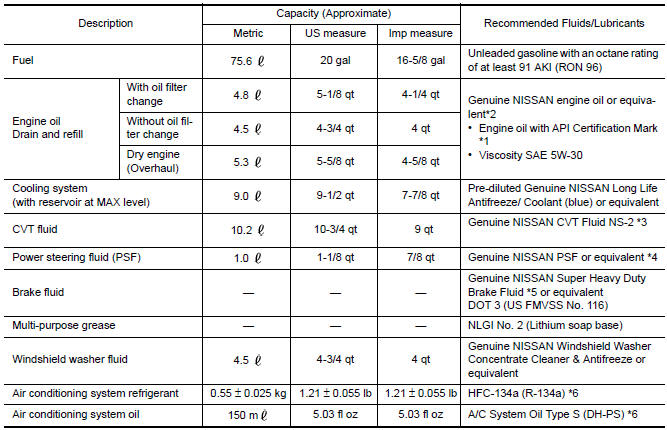

FOR USA AND CANADA : Fluids and Lubricants
*1: For further details, see "Engine Oil Recommendation".
*2: NISSAN recommends Genuine NISSAN Ester Oil available at a NISSAN dealer.
*3: Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than
Genuine NISSAN CVT Fluid NS-2 will damage
the CVT, which is not covered by the NISSAN new vehicle limited warranty.
*4: DEXRONTM VI type ATF may also be used.
*5: Available in mainland U.S.A through a NISSAN dealer.
*6: For further information, see "Air conditioning specification label".
FOR USA AND CANADA : Engine Oil Recommendation
NISSAN recommends the use of an energy conserving oil in order to improve fuel economy. Select only engine oils that meet the American Petroleum Institute (API) certification and International Lubricant Standardization and Approval Committee (ILSAC) certification and SAE viscosity standard. These oils have the API certification mark on the front of the container. Oils which do not have the specified quality label should not be used as they could cause engine damage.
FOR USA AND CANADA : Anti-Freeze Coolant Mixture Ratio
The engine cooling system is filled at the factory with a pre-diluted mixture of 50% Genuine NISSAN Long Life Antifreeze/Coolant (blue) and 50% water to provide year-round anti-freeze and coolant protection. The antifreeze solution contains rust and corrosion inhibitors. Additional engine cooling system additives are not necessary.
WARNING:
CAUTION:
FOR MEXICO

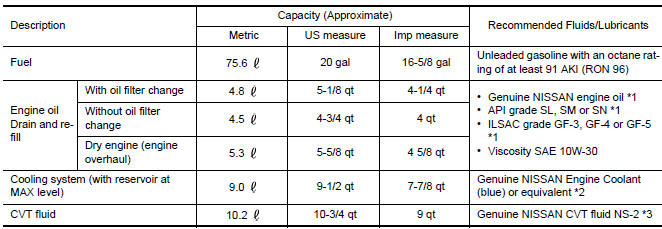

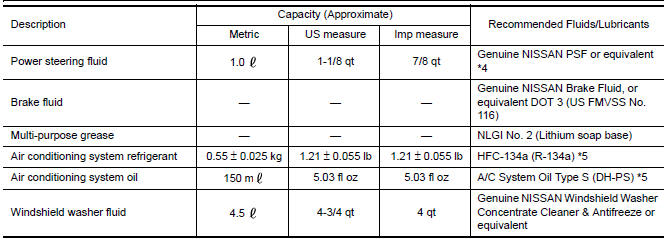

FOR MEXICO : Fluids and Lubricants
*1: For further details, see "Engine Oil Recommendation".
*2: Use Genuine NISSAN Engine Coolant (blue) or equivalent in its quality, in
order to avoid possible aluminum corrosion within the
engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while
using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty
period.
*3: Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than
Genuine NISSAN CVT fluid NS-2 will damage
the CVT, which is not covered by the warranty.
*4: DEXTRON VI type ATF may also be used.
*5: For further information, see "Air conditioning specification label".
FOR MEXICO : Engine Oil Recommendation
GASOLINE ENGINE
5W-30 is also preferable and will improve fuel economy.

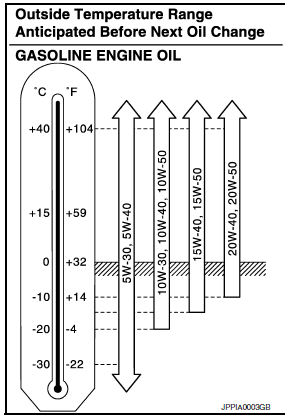

If 10W-30 or 5W-30 is not available, select the viscosity, from the chart, that is suitable for the outside temperature range.
FOR MEXICO : Engine Coolant Mixture Ratio
The engine cooling system is filled at the factory with a high-quality, year-round and extended life engine coolant.
The high quality engine coolant contains the specific solutions effective for the anti-corrosion and the antifreeze function. Therefore, additional cooling system additives are not necessary.

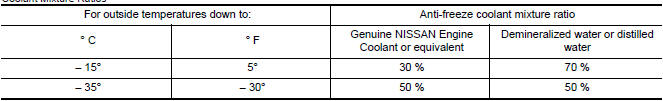

Coolant Mixture Ratios
When checking the engine coolant mixture ratio by the coolant hydrometer, use the chart below to correct your hydrometer reading (specific gravity) according to coolant temperature.
Mixed Coolant Specific Gravity
WARNING: Do not remove the radiator cap when the engine is hot. Serious burns could be caused by high pressure fluid escaping from the radiator. Wait until the engine and radiator cool down.
CAUTION:
