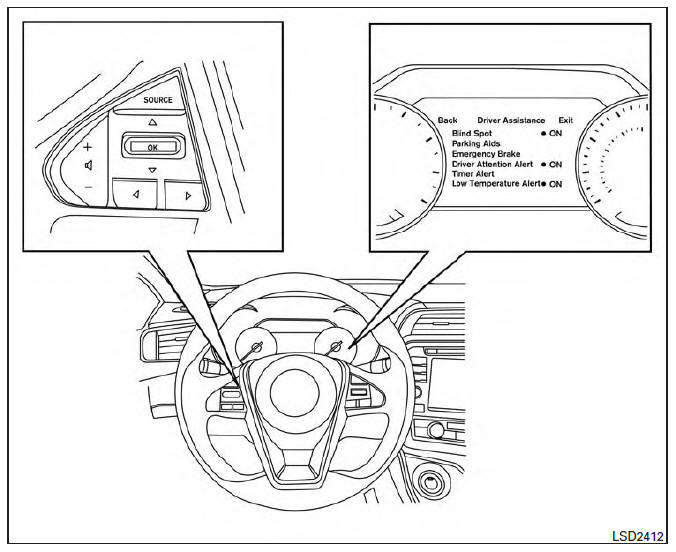

Perform the following steps to enable or disable the BSW system.
1. Press the
button until
"Settings" displays
in the vehicle information display and
then press OK. Use the
button
to
select "Driver Assistance". Then press the
OK button.
2. Select "Blind Spot" and press the OK button.
NOTE:
BSW system operation
BSW system limitationsAutomatic drive positioner system
AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram
AUTOMATIC DRIVE POSITIONER SYSTEM : System Description
OUTLINE
The system automatically moves the driver seat, steering column and door
mirror position by the driver seat control unit and the automatic drive
positioner control unit. The d ...
RGB (B: blue) signal circuit
Description
Transmit the image displayed with AV control unit with RGB signal to the
display unit.
Diagnosis Procedure
1.CHECK CONTINUITY RGB (B: BLUE) SIGNAL CIRCUIT
Turn ignition switch OFF.
Disconnect display unit connector M141 and AV control unit
connector
M154.
Check con ...
