COOLING FAN

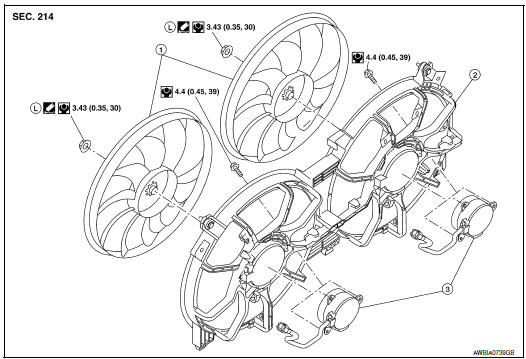

Disassembly and Assembly of Cooling Fan
- Fan blade
- Fan shroud
- Fan motor
DISASSEMBLY
- Remove fan blade nut.
- Remove fan blade from fan motor.
- Remove fan motor bolts and remove fan motor from fan shroud.
ASSEMBLY
Assembly is in the reverse order of disassembly.
Water outlet and water piping
Removal and Installation
Heater hose
Clamp
Water hose
Clamp
Water outlet
Gasket
Gasket
Water connector
O-ring
Water bypass pipe
Clamp
Water hose
Heater pipe
...
Service data and specifications (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Capacity
Thermostat
Radiator
...
Other materials:
Driver seat control unit
Reference Value
VALUES ON THE DIAGNOSIS TOOL
CONSULT MONITOR ITEM
*: The value at the position attained when the battery is connected is
regarded as 32768.
TERMINAL LAYOUT
PHYSICAL VALUES
Fail Safe
The fail-safe mode may be activated if the following symptoms are observed.
...
Subwoofer
Removal and Installation
Subwoofer LH
Subwoofer RH
Subwoofer screws
Subwoofer connectors
REMOVAL
Remove the rear parcel shelf finisher. Refer to INT-36, "Removal
and Installation".
Remove the subwoofer screws.
Pull out the subwoofer, disconnect the harness c ...
Diagnosis and repair workflow
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work Flow
OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get detailed information from the customer about the symptom (the condition
and the environment when the incident/malfunction occurred).
2.CONFIRM THE SYMPTOM
Try to co ...
