The air cleaner filter should not be cleaned and reused. Replace it according to the maintenance log shown in the "Maintenance and schedules" section of this manual. When replacing the filter, wipe the inside of the air cleaner filter housing and the cover with a damp cloth.

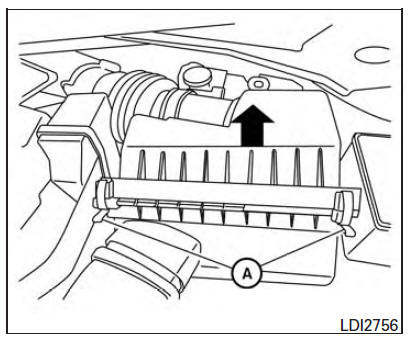

To remove the air cleaner filter:
WARNING
In-cabin microfilter
The in-cabin microfilter restricts the entry of airborne dust and pollen particles and reduces some objectionable outside odors. The filter is located behind the glove box. For additional information, refer to the "Maintenance and schedules" section of this manual for change intervals.
If replacement is required, it is recommended that you visit a NISSAN dealer for this service.
Front seat
DRIVER SIDE
DRIVER SIDE : Exploded View
Driver Seat - With Climate Controlled Seats
Seatback board
Seatback board clip
Seat cushion lower rear finisher
Seat harness
Seat cushion inner finisher inside
(RH)
Recline mechanism inner cover
Seat cushion outer finisher (RH)
Sea ...
STRG branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the steering angle sensor
for damage, bend and loose connection
(unit side and connector side).
2.CHECK HARNESS FOR OPE ...
Unit removal and installation
TRANSAXLE ASSEMBLY
Exploded View
Air breather hose
CVT fluid level gauge
CVT fluid charging pipe
O-ring
Copper sealing washer
Fluid cooler tube
Transaxle assembly
A. Refer to INSTALLATION.
...
