Nissan Maxima Service and Repair Manual: P0031, P0032, P0051, P0052 A/F sensor 1 heater

Nissan Maxima Service and Repair Manual / Engine / Engine control system / DTC/circuit diagnosis / P0031, P0032, P0051, P0052 A/F sensor 1 heater

Description

SYSTEM DESCRIPTION

Nissan Maxima. SYSTEM DESCRIPTION

The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating condition to keep the temperature of A/F sensor 1 element within the specified range.

DTC Logic

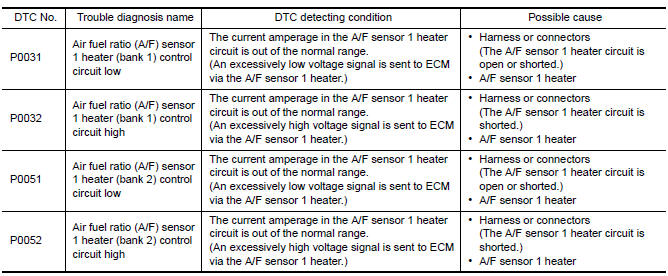

DTC DETECTION LOGIC

Nissan Maxima. DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conducting the next test.

  1. Turn ignition switch OFF and wait at least 10 seconds.
  2. Turn ignition switch ON.
  3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.

2.PERFORM DTC CONFIRMATION PROCEDURE

  1. Start engine and let it idle for at least 10 seconds.
  2. Check 1st trip DTC.

Diagnosis Procedure

Regarding Wiring Diagram information

1.CHECK GROUND CONNECTION

  1. Turn ignition switch OFF.
  2. Check ground connection E9.

2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

Nissan Maxima. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

  1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
  2. Turn ignition switch ON.

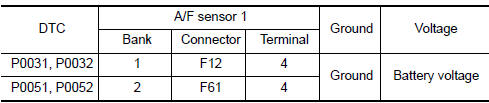

  3. Check the voltage between A/F sensor 1 harness connector and ground.

Nissan Maxima. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

3.DETECT MALFUNCTIONING PART

Check the following.

  • IPDM E/R harness connector F10
  • 15 A fuse (No. 37)
  • Harness for open or short between A/F sensor 1 and fuse

4.CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT

  1. Turn ignition switch OFF.
  2. Disconnect ECM harness connector.

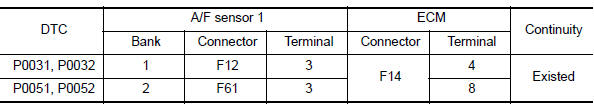

  3. Check harness continuity between A/F sensor 1 harness connector and ECM harness connector.
  4. Also check harness for short to ground and short to power.

Nissan Maxima. CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT

5.CHECK A/F SENSOR 1 HEATER

6.REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

  • Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
  • Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner [commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial service tool).

7.CHECK INTERMITTENT INCIDENT

Component Inspection

1.CHECK AIR FUEL RATIO (A/F) SENSOR 1

Nissan Maxima. CHECK AIR FUEL RATIO (A/F) SENSOR 1

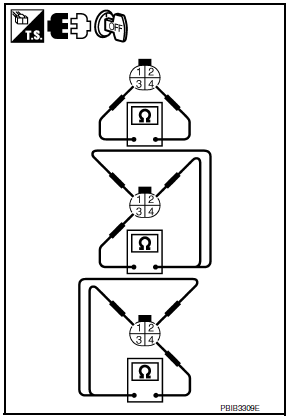

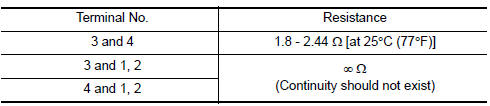

Check resistance between A/F sensor terminals as per the following.

Nissan Maxima. CHECK AIR FUEL RATIO (A/F) SENSOR 1

2.REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

  •  Discard any (A/F) sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
  •  Before installing new (A/F) sensor, clean exhaust system threads using Heated Oxygen Sensor Thread Cleaner [commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial service tool).
