Description
ECM controls ignition timing and engine idle speed when engine is started with pre-warming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.
DTC Logic

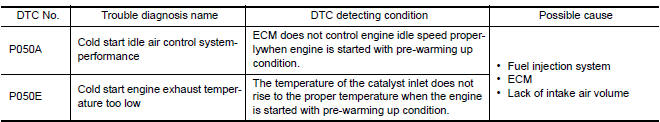

DTC DETECTION LOGIC
NOTE: If DTC P050A or P050E is displayed with other DTC, first perform the trouble diagnosis for other DTC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
With CONSULT
With GST
Follow the procedure "With CONSULT" above.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
With CONSULT
With GST
Follow the procedure "With CONSULT" above.
Diagnosis Procedure
1.PERFORM IDLE AIR VOLUME LEAR
2.CHECK INTAKE SYSTEM
Check for the cause of intake air volume lacking. Refer to the following.
3.CHECK FUEL INJECTION SYSTEM FUNCTION
Perform DTC Confirmation Procedure for DTC P0171, P0174.
4.PERFORM DTC CONFIRMATION PROCEDURE
5.REPLACE ECM
