Nissan Maxima Service and Repair Manual: Symptom diagnosis
SYSTEM SYMPTOM
Symptom Table

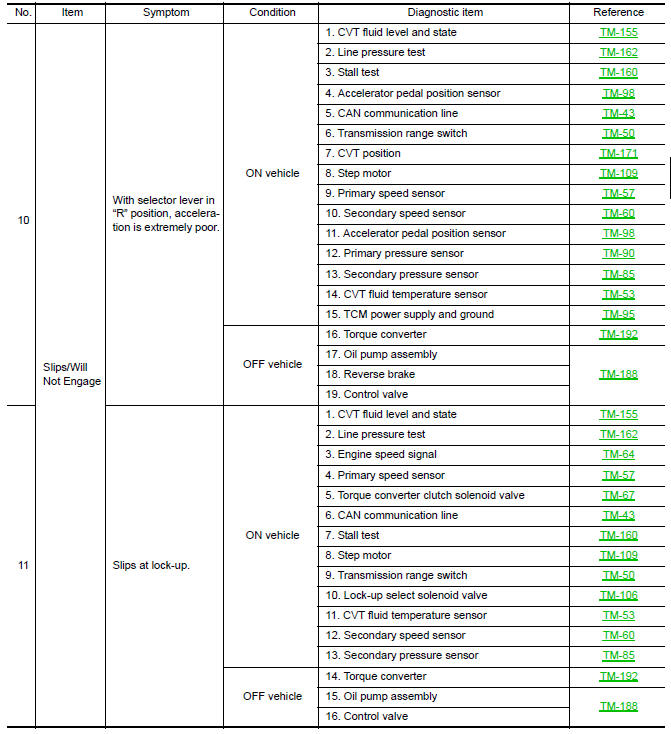

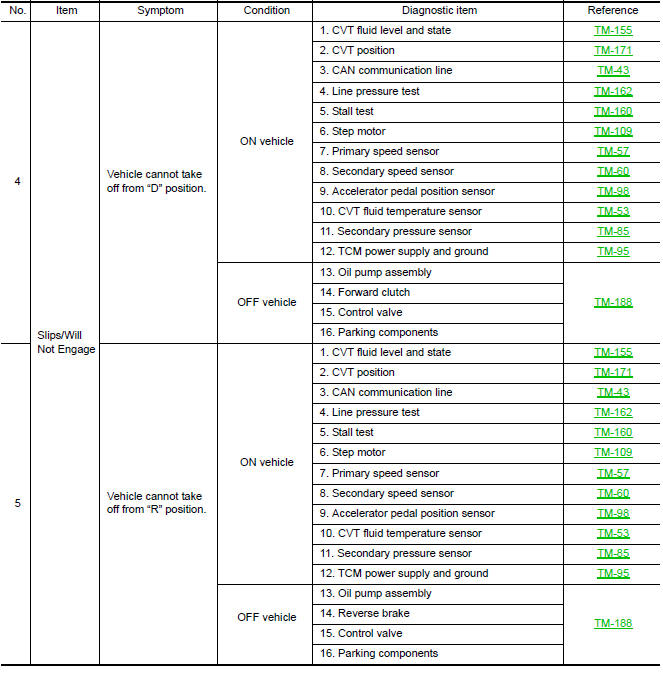

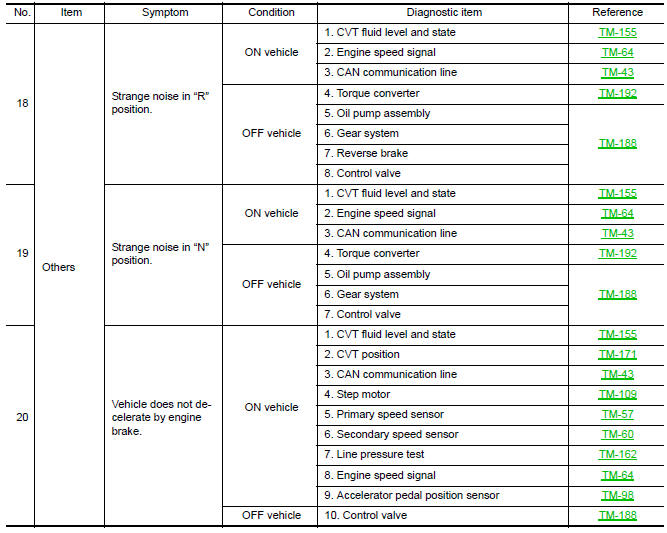

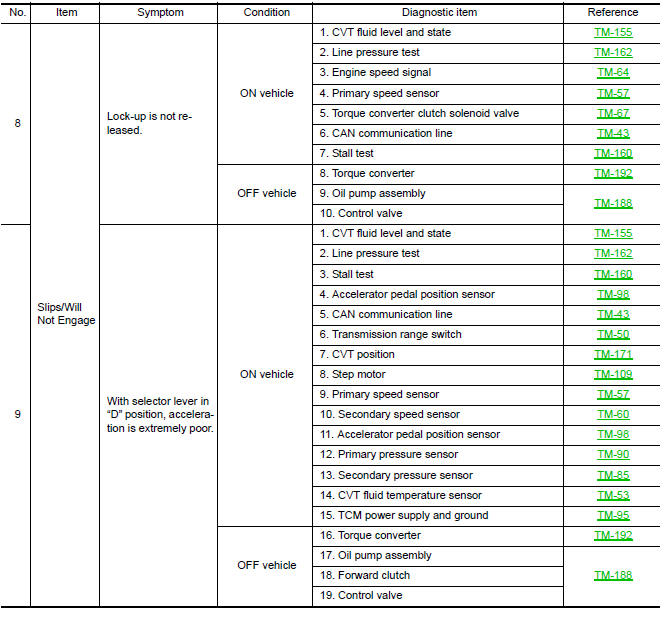

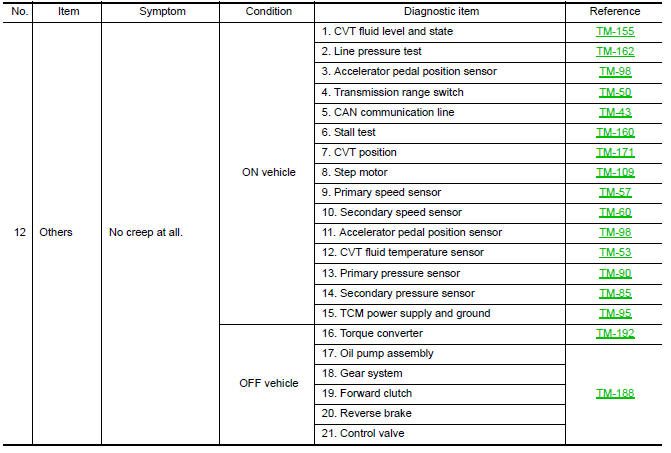

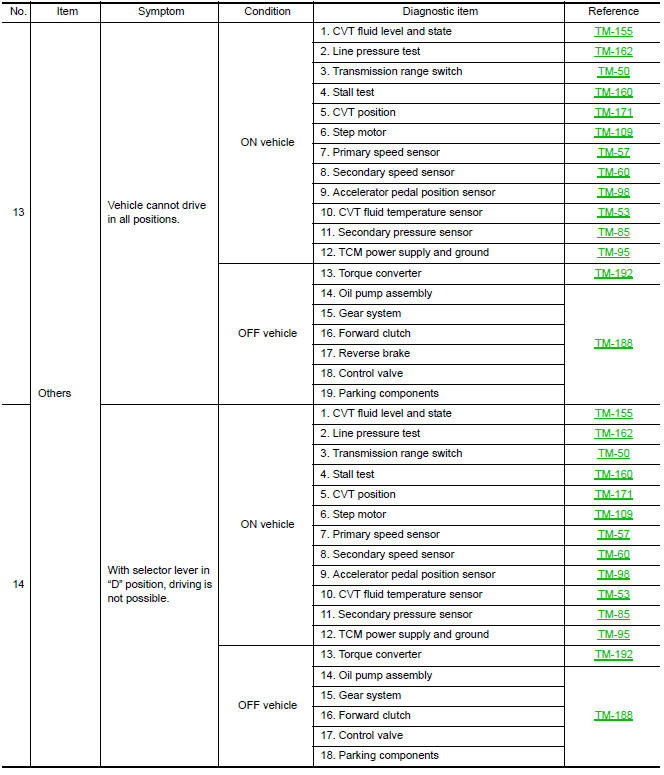

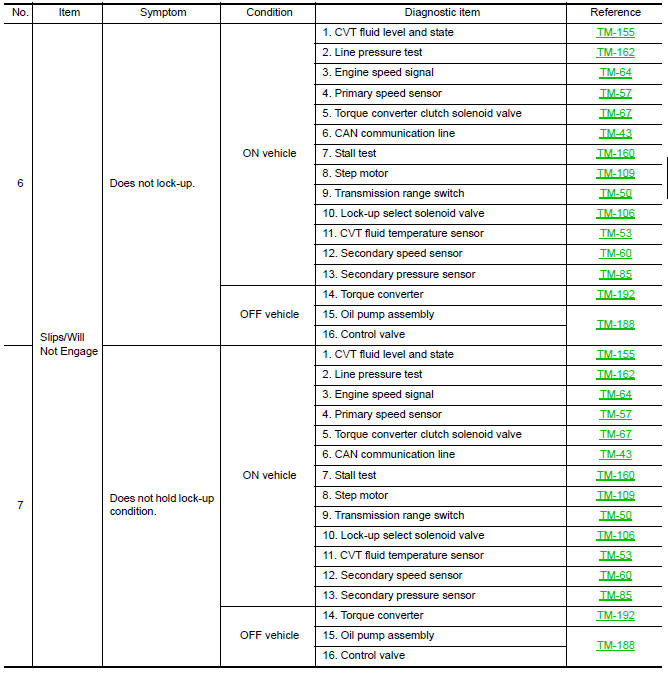

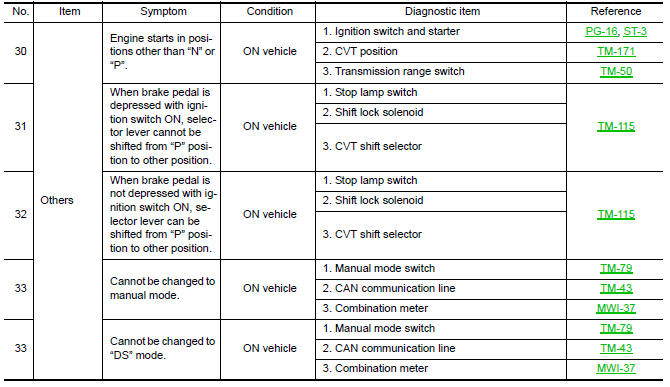

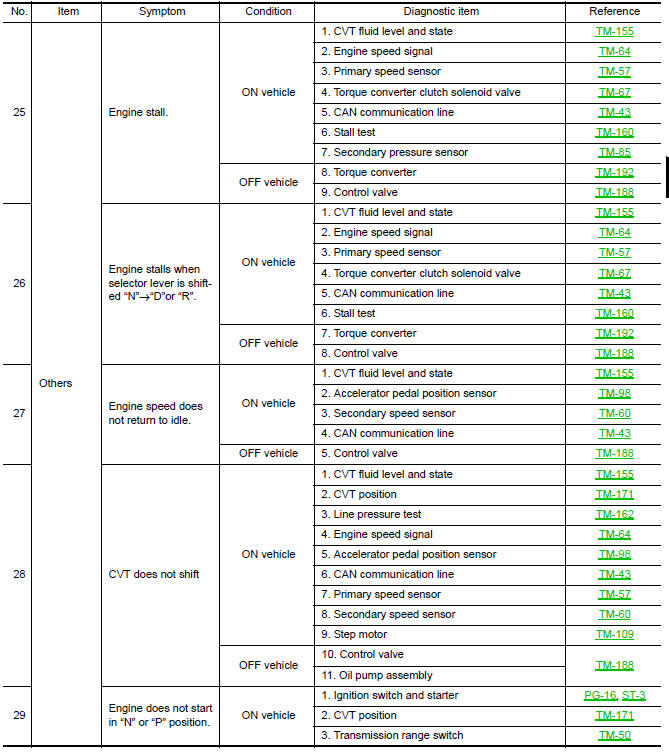

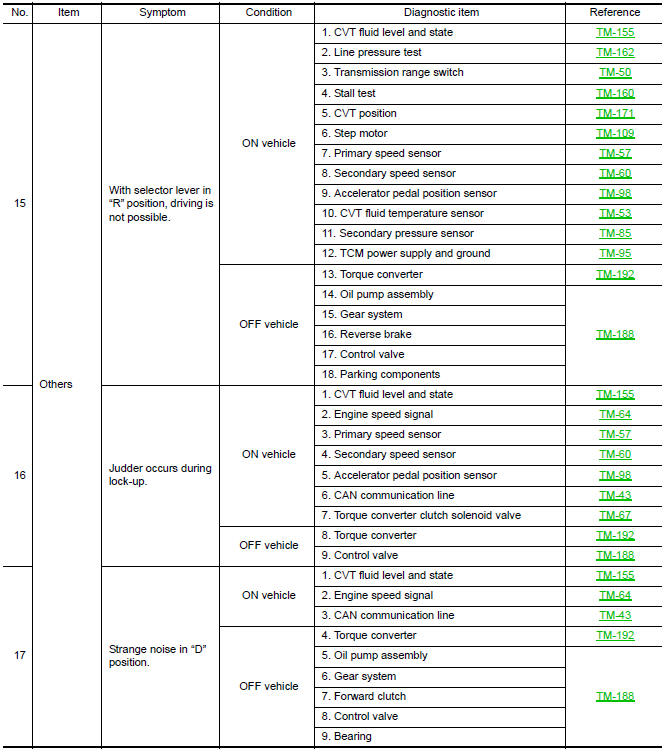

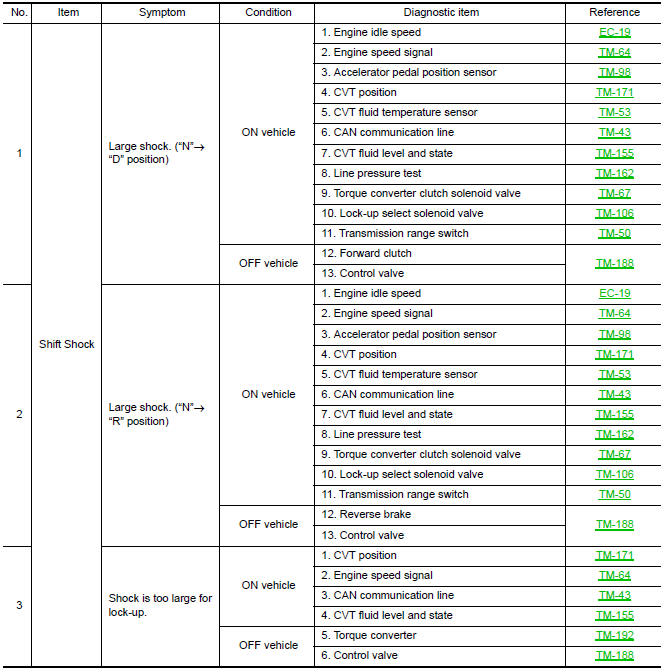

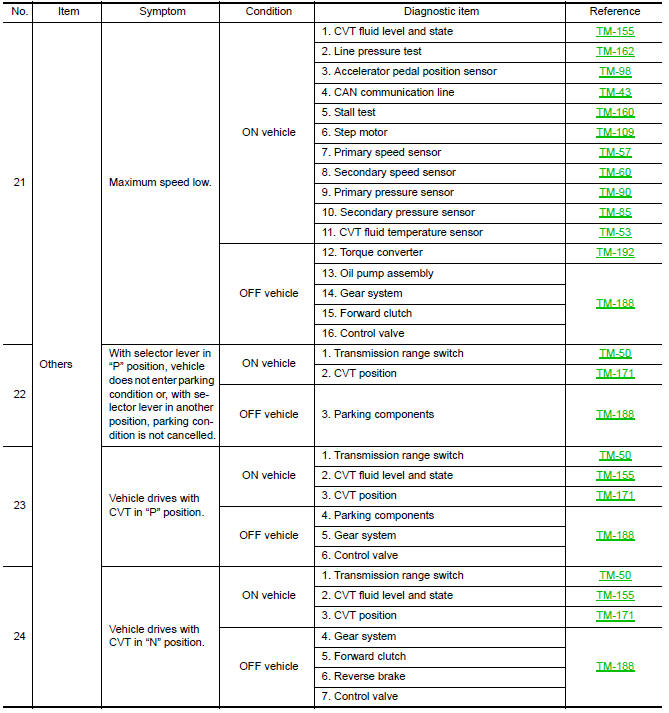

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
CVT shift lock system
Wiring Diagram
...
Precaution
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT
PRE-TENSIONER"
The Supplemental Restraint System such as "AIR BAG" and
"SEAT BELT PRE-TENSIONER", used a ...
