Nissan Maxima Service and Repair Manual: Service data and specifications (SDS)

Nissan Maxima Service and Repair Manual / Suspension / Rear suspension / Service data and specifications (SDS)

General Specification (Rear)

Nissan Maxima. General Specification (Rear)

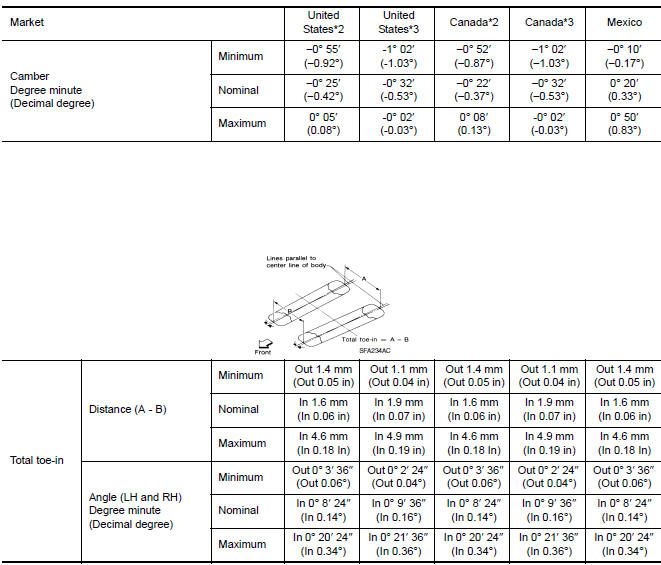

Wheel Alignment (Unladen*1)

Nissan Maxima. Wheel Alignment (Unladen*1)

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
*2: 18" tire.
*3: 19" tire.

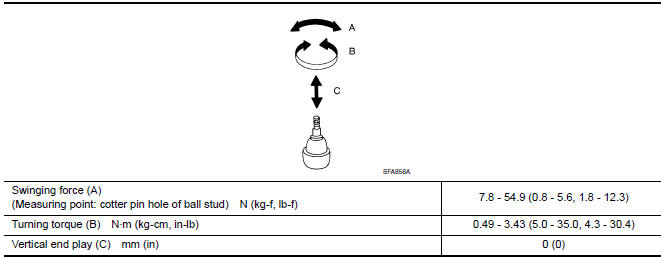

Ball Joint

Nissan Maxima. Ball Joint

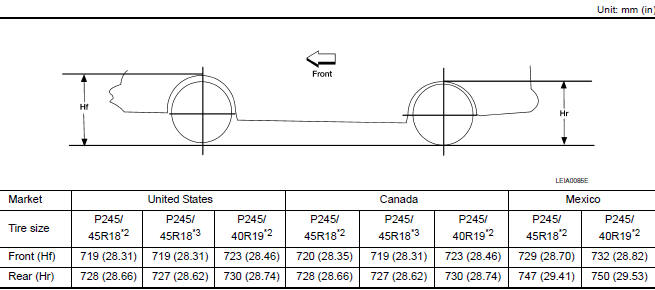

Wheelarch Height (Unladen*1)

Nissan Maxima. Wheelarch Height (Unladen*1)

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats in designated positions.
*2: Without top load sunroof
*3: With top load sunroof

    Unit removal and installation
    Rear suspension assembly Exploded View Rear shock absorber cap Strut mount insulator Shock absorber mount seal Rear suspension bound bumper Rear shock absorber Rear suspension a ...
