SERVICE DATA AND SPECIFICATIONS (SDS)

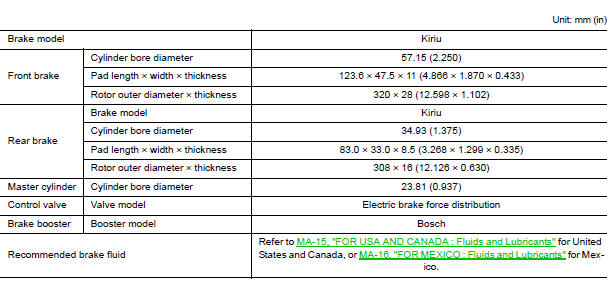

General Specifications

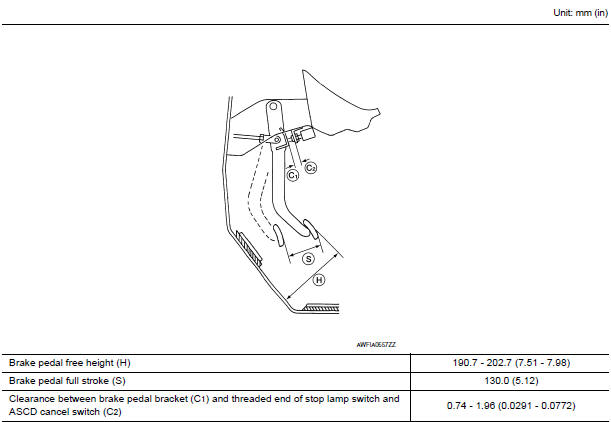

Brake Pedal

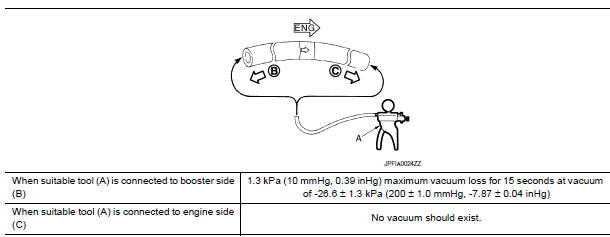

Check Valve

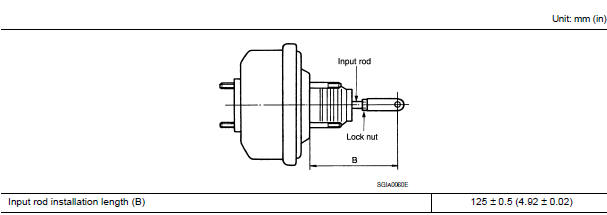

Brake Booster

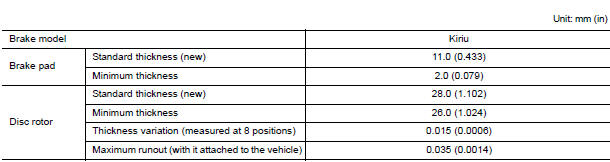

Front Disc Brake
Rear Disc Brake
Rear view monitor system
System Diagram
System Description
When the shift selector is in the R position, the display shows a view to the
rear of the vehicle. Lines which indicate the vehicle clearance and distances
are also displayed.
Component Parts Location
Tweeter LH M143
Tweeter RH M144
AV control ...
Diagnosis and repair workflow
Work Flow
PRECAUTIONS FOR DIAGNOSIS
If steering angle sensor, steering system parts, suspension system parts, ABS
actuator and electric unit (control
unit) or if wheel alignment has been adjusted, be sure to adjust neutral
position of steering angle sensor
before driving. Refer to BRC-6, & ...
Radiator
Exploded View
Radiator
CVT oil cooler hose
Radiator drain plug
Radiator hose (lower) clamp
Radiator hose (lower)
Radiator hose (lower) bracket
Reservoir tank
Reservoir hose
Radiator cap
Radiator cap adaptor
Radiator hose (upper)
Radiator hose (upper) clamp
&nb ...
