The front seats are warmed by built-in heaters.

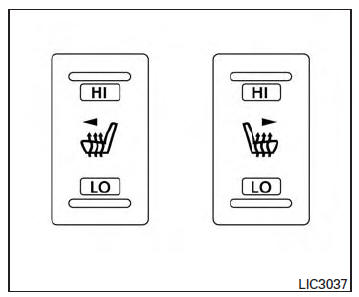

1. Start the engine.
2. Push the LO or HI position of the switch, as desired. The indicator light in the switch will illuminate.
The heater is controlled by a thermostat, automatically turning the heater on and off.
The indicator light will remain on as long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the switch off.
WARNING
Do not use or allow occupants to use the seat heater if you or the occupants cannot monitor elevated seat temperatures or have an inability to feel pain in body parts that contact the seat. Use of the seat heater by such people could result in serious injury.
CAUTION
It is recommended that you visit a NISSAN dealer for this service.
Climate controlled seat switches (if so equipped)
Heated steering wheel switch (if so equipped)Main line between hvac and ABS circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative
terminal.
Check the following terminals and connectors for
damage, bend and loose connection (connector side
and harness side).
Harness connec ...
ADP branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative
terminal.
Check the following terminals and connectors
for damage, bend and loose connection (unit side and connector
side).
...
Camshaft
Exploded View
Camshaft position sensor bracket (RH)
Camshaft brackets
No. 1 camshaft bracket (RH)
Camshaft (EXH) (RH)
Camshaft (INT) (RH)
Cylinder head (RH)
Cylinder head (LH)
Camshaft (EXH) (LH)
Camshaft (INT) (LH)
No. 1 camshaft bracket (LH)
Camshaft brackets
Cam ...
