Nissan Maxima Service and Repair Manual: Steering angle sensor

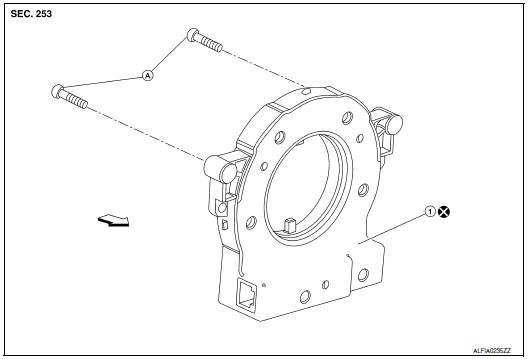

Exploded View
- Steering angle sensor
- Screw
Front
Removal and Installation
REMOVAL
- Remove the spiral cable. Refer to SR-15, "Removal and Installation".
- Remove the screws (A) and release the clips (B) to remove the steering angle sensor (1) from the spiral cable (2).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Perform the neutral position adjustment for the steering angle sensor
Yaw rate/side/decel G sensor
Exploded View
Yaw rate/side/decel G sensor
Yaw rate/side/decel G sensor harness
connector
Front
Removal and Installation
CAUTION:
Do not drop or strike the yaw rate/sid ...
