Nissan Maxima Service and Repair Manual: Yaw rate/side/decel G sensor

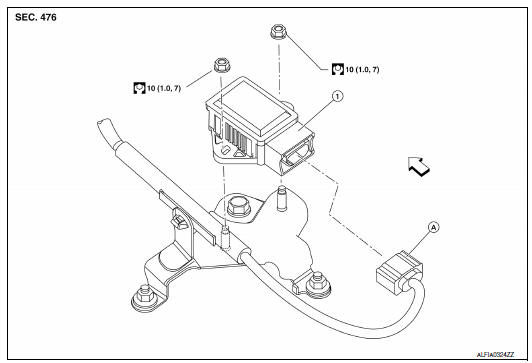

Exploded View

Nissan Maxima. Exploded View

  1. Yaw rate/side/decel G sensor
  2. Yaw rate/side/decel G sensor harness connector
    Front

Removal and Installation

CAUTION:

  •  Do not drop or strike the yaw rate/side/decel G sensor to prevent damage.
  • Do not use power tool to remove the yaw rate/side/decel G sensor to prevent damage.

REMOVAL

  1. Remove the center console. Refer to IP-14, "Removal and Installation".
  2. Disconnect the harness connector from the yaw rate/side/decel G sensor.
  3. Remove the yaw rate/side/decel G sensor nuts.
  4. Remove the yaw rate/side/decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.
