Nissan Maxima Service and Repair Manual: Blower unit
BLOWER UNIT
BLOWER UNIT : Removal and Installation

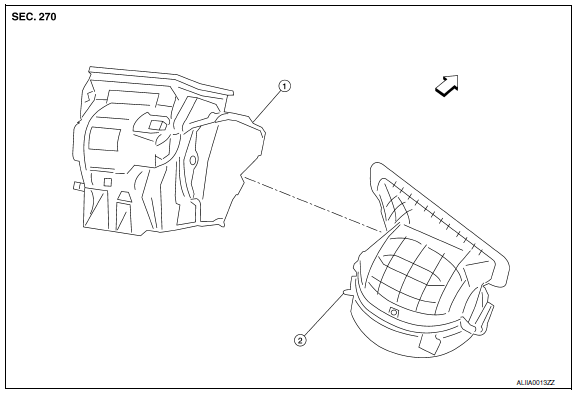

COMPONENTS
- Heater and cooling unit
- Blower unit
Front
REMOVAL
- Remove the heater and cooling unit assembly. Refer to HA-47, "HEATER & COOLING UNIT ASSEMBLY : Removal and Installation".
- Disconnect the harness connector from blower motor.
- Remove the blower unit screws and the blower unit.
INSTALLATION
Installation is in the reverse order of removal.
BLOWER MOTOR
BLOWER MOTOR : Removal and Installation
REMOVAL
- Remove the glove box assembly
- Disconnect the harness connector (1) from blower motor.
- Remove the three blower motor screws (A) and the blower motor from the blower unit.
INSTALLATION
Installation is in the reverse order of removal.
FAN CONTROL AMP.
FAN CONTROL AMP. : Removal and Installation
The fan control amplifier is part of the blower motor.
Ducts and grilles
Exploded View
Ducts
Side defroster nozzle (RH)
Front defroster nozzle
Side defroster nozzle (LH)
Upper ventilator duct
Heater and cooling unit assembly
Connector duct (LH)
Floor ...
