Component Function Check
Symptom

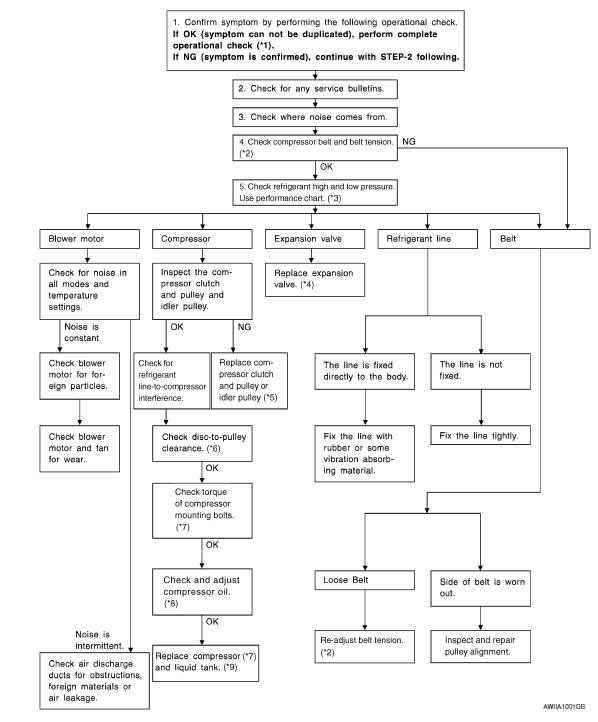

INSPECTION FLOW

Insufficient heating
Memory function does not operatePower supply and ground circuit
BCM
BCM : Diagnosis Procedure
1. CHECK FUSE AND FUSIBLE LINK
Check if the following BCM fuses or fusible link are blown.
2. CHECK POWER SUPPLY CIRCUIT
Turn ignition switch OFF.
Disconnect BCM.
Check voltage between BCM harness connector and ground.
3. CHECK GROUND CIRCUIT
Che ...
ECU diagnosis information
CLIMATE CONTROLLED SEAT CONTROL UNIT
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
Fail-safe
Climate controlled seat control unit equips fail-safe function.
When a malfunction occurs in the systems shown as per the following,
climate controlled seat control unit
stops output. ...
P1226 TP sensor
Description
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometer which transfor ...
