Nissan Maxima Service and Repair Manual: Driver seat control unit

Reference Value

VALUES ON THE DIAGNOSIS TOOL

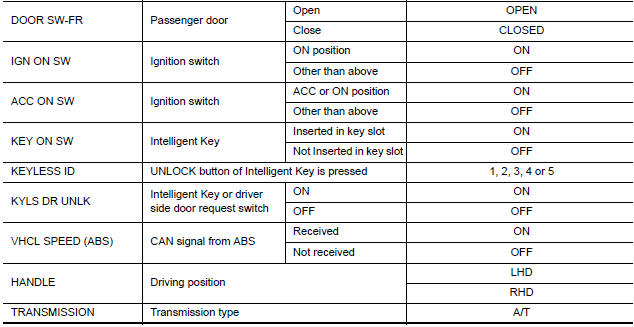

CONSULT MONITOR ITEM

Nissan Maxima. CONSULT MONITOR ITEM

Nissan Maxima. CONSULT MONITOR ITEM

Nissan Maxima. CONSULT MONITOR ITEM

*: The value at the position attained when the battery is connected is regarded as 32768.

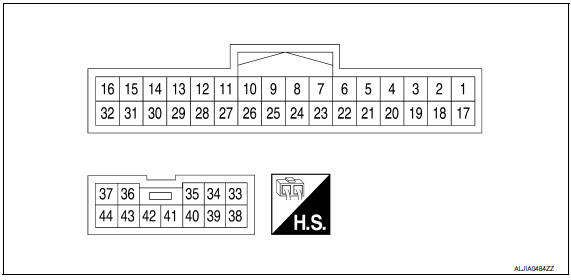

TERMINAL LAYOUT

Nissan Maxima. TERMINAL LAYOUT

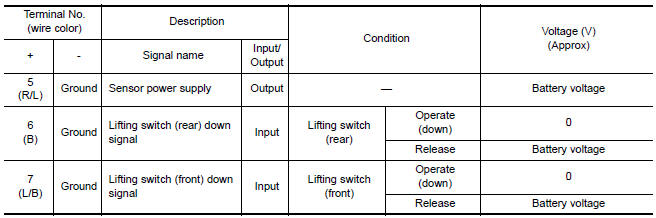

PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Fail Safe

The fail-safe mode may be activated if the following symptoms are observed.

Nissan Maxima. Fail Safe

DTC Index

Nissan Maxima. DTC Index

Nissan Maxima. DTC Index

  • 0: Current malfunction is present
  • 1-39: Displayed if any previous malfunction is present when current condition is normal. The numeral value increases by one at each IGN ON to OFF cycle from 1 to 39. The counter remains at 39 even if the number of cycles exceeds it. However, the counter is reset to 1 if any malfunction is detected again, the normal operation is resumed and the ignition switch is turned from OFF to ON.
    ECU diagnosis information
    ...

    Automatic drive positioner control unit
