Nissan Maxima Service and Repair Manual: Trunk open function

TRUNK LID OPENER SWITCH

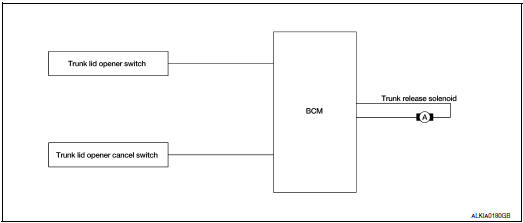

TRUNK LID OPENER SWITCH : System Diagram

Nissan Maxima. TRUNK LID OPENER SWITCH : System Diagram

TRUNK LID OPENER SWITCH : System Description

Nissan Maxima. TRUNK LID OPENER SWITCH : System Description

TRUNK LID OPENER OPERATION

When trunk lid opener switch is ON, BCM opens trunk release solenoid.

BCM can open trunk lid opener actuator when

  • vehicle speed is less than 5 km/h (3 MPH)
  • vehicle security system is disarmed or in pre-armed phase BCM does not open trunk lid opener actuator when
  • trunk lid opener cancel switch is OFF (CANCEL)
  • vehicle speed is more than 5 km/h (3 MPH)
  • vehicle security system is armed or in alarm phase
  • Within 3 seconds of removing the Intelligent Key from the key slot

TRUNK LID OPENER SWITCH : Component Parts Location

Nissan Maxima. TRUNK LID OPENER SWITCH : Component Parts Location

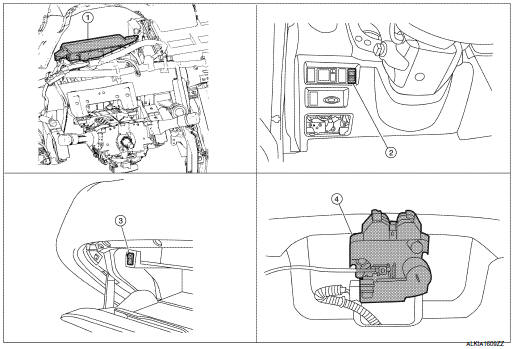

  1. BCM M16, M17, M18, M20, M21
  2. Trunk lid opener switch M75
  3. Trunk lid opener cancel switch M74
  4. Trunk lamp switch and trunk release solenoid T7

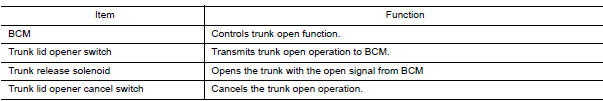

TRUNK LID OPENER SWITCH : Component Description

Nissan Maxima. TRUNK LID OPENER SWITCH : Component Description

TRUNK REQUEST SWITCH

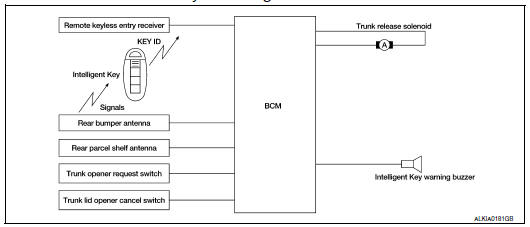

TRUNK REQUEST SWITCH : System Diagram

Nissan Maxima. TRUNK REQUEST SWITCH : System Diagram

TRUNK REQUEST SWITCH : System Description

Only when pressing the request switch, it is possible to open the trunk by carrying the Intelligent Key.

  • The Intelligent Key system is a system that makes it possible to open the trunk (trunk open function) by carrying the Intelligent Key which operates based on the results of electronic ID verification using two-way communications between the Intelligent Key and the vehicle (BCM).
    CAUTION
    : The driver should always carry the Intelligent Key
  • If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer goes off to inform the driver (warning chime functions).
  • When trunk is opened with request switch or remote controller button operation, the hazard lamps flash and the Intelligent Key warning buzzer or horns sound (hazard and buzzer/horn reminder function).
  • The settings for each function can be changed with the CONSULT.
  • If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be registered.
  • It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT.

OPERATION DESCRIPTION/TRUNK OPEN

  • When the BCM detects that trunk open request switch is pressed, it starts the outside key antenna (trunk room) and inside key antenna corresponding to the pressed trunk open request switch and transmits the request signal to the Intelligent Key. And then, check that the Intelligent Key is near the trunk.
  • If the Intelligent Key is within the outside key antenna (trunk room) detection area, it receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
  • BCM receives the key ID signal and compares it with the registered key ID.
  • BCM transmits the trunk open request signal and sounds Intelligent Key warning buzzer 4 consecutive times.
  • When BCM receives the trunk open request signal, it operates the trunk release solenoid and opens the trunk.

OPERATION CONDITION

If the following conditions are not satisfied, trunk open operation is not performed even if the request switch is operated.

Each request switch operation

Operation condition

Trunk open operation
  • Intelligent Key is within outside key antenna (trunk room) detection area*
  • Trunk cancel switch is ON
  • Key reminder functions operate (trunk)

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

Nissan Maxima. OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of trunk open function is in the range of approximately 80 cm (31. 50 in) surrounding trunk opener request switch (1). However, this operating range depends on the ambient conditions.

KEY REMINDER FUNCTION

Nissan Maxima. KEY REMINDER FUNCTION

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob, it might activate the door locks accidentally but unlock operation will be perform at these cases.

CAUTION:

  • The above function operates when the Intelligent Key is inside the vehicle. However, there may be times when the Intelligent Key cannot be detected, and this function will not operate when the Intelligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the Intelligent Key is in the door pocket for the open door.
  • The key reminder function is operated when the trunk is opened/closed and the buzzers sound. If the following operations are performed, the key reminder function is cleared and buzzer sounds are stopped.
  • Remote controller door lock button operation of Intelligent Key
  • Remote controller door unlock button operation of Intelligent Key
  • When the trunk is closed, the Intelligent Key is not inside the vehicle
  • When any door is open

HAZARD AND BUZZER REMINDER FUNCTION

During trunk opening operation by request switch, the hazard warning lamps and Intelligent Key warning buzzer will flash or sound as a reminder.

When trunk open by each request switch, IPDM E/R sounds Intelligent Key warning buzzer as a reminder and transmits hazard request signal to BCM via CAN communication line.

BCM flashes hazard warning lamps as a reminder.

Operating function of hazard and buzzer reminder

Nissan Maxima. Operating function of hazard and buzzer reminder

How to change hazard and buzzer reminder mode

With CONSULT

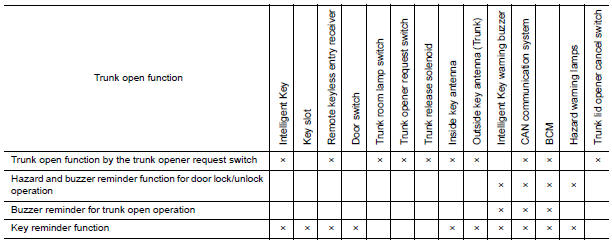

LIST OF OPERATION RELATED PARTS

Parts marked with × are the parts related to operation.

Nissan Maxima. LIST OF OPERATION RELATED PARTS

TRUNK REQUEST SWITCH : Component Parts Location

Nissan Maxima. TRUNK REQUEST SWITCH : Component Parts Location

Nissan Maxima. TRUNK REQUEST SWITCH : Component Parts Location

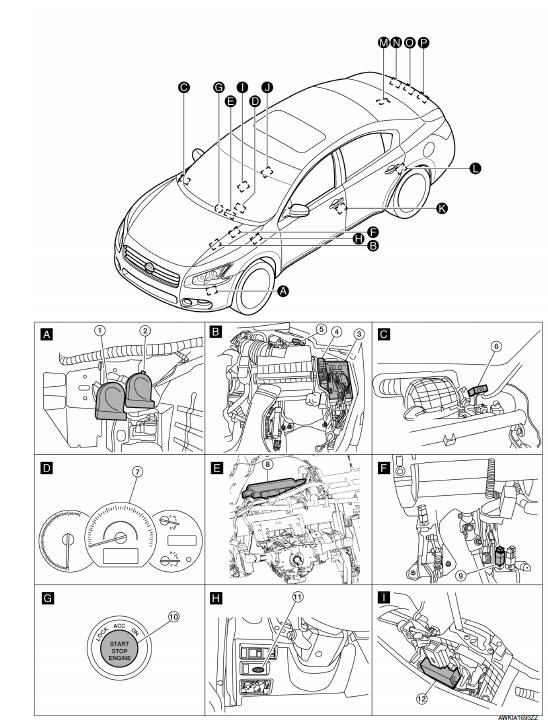

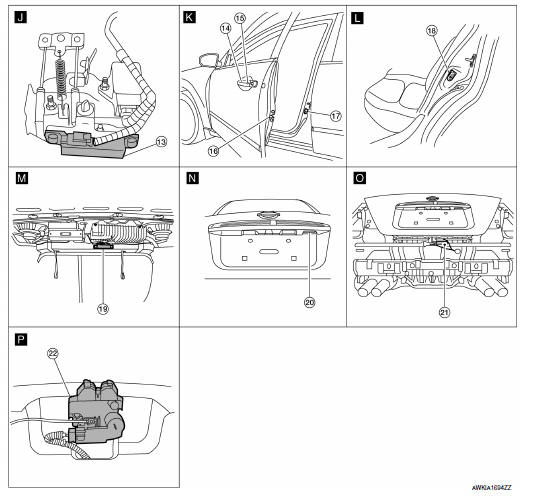

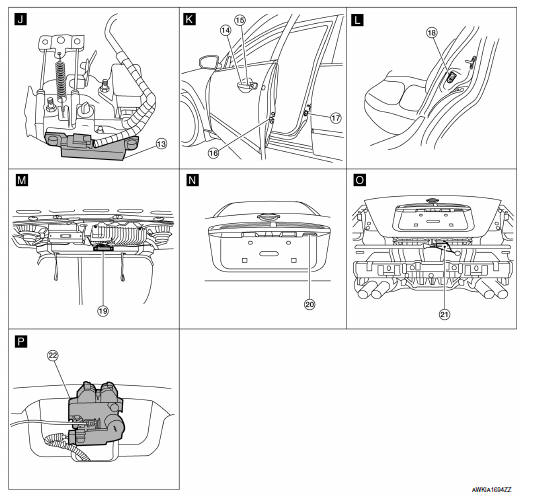

  1. Horn (low) E215 (view with front fender protector LH removed)
  2. Horn (high) E216
  3. IPDM E/R E17, E18
  4. Horn relay H-1
  5. Intelligent Key warning buzzer E28
  6. Remote keyless entry receiver M27 (view with instrument panel removed)
  7. Combination meter M24
  8. BCM M16, M17, M18, M19, M20, M21 (view with instrument panel removed)
  9. Stop lamp switch E38
  10. Push button ignition switch M38
  11. Key slot M40
  12. CVT shift selector (park position switch (Intelligent Key system)) M78
  13. Front console antenna M41 (view with center console assembly removed)
  14. Front outside handle LH (outside key antenna) D6
    Front outside handle RH (outside key antenna) D106
  15. Front outside handle LH (request switch) D15 Front outside handle RH (request switch) D115
  16. Front door lock assembly LH (door unlock sensor) D10
  17. Front door switch LH B8 RH B108
  18. Rear door switch LH B18 RH B116
  19. Rear parcel shelf antenna B29
  20. Trunk opener request switch T5
  21. Rear bumper antenna B46
  22. Trunk lamp switch and trunk release solenoid T7

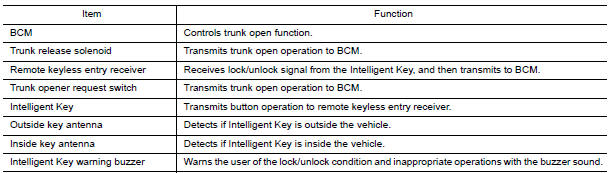

TRUNK REQUEST SWITCH : Component Description

Nissan Maxima.  Component Description

INTELLIGENT KEY

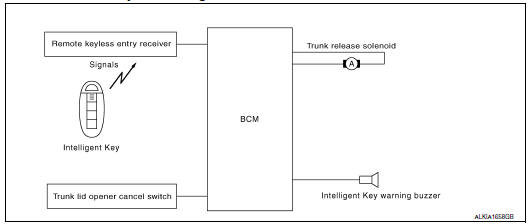

INTELLIGENT KEY : System Diagram

Nissan Maxima. System Diagram

INTELLIGENT KEY : System Description

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the same manner as the remote controller by operating the trunk open button.

OPERATION DESCRIPTION/TRUNK OPEN FUNCTION

  • When trunk button of the Intelligent Key is pressed, the trunk open signal is transmitted from the Intelligent Key to the BCM via remote keyless entry receiver.
  • When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the trunk.

OPERATION CONDITION

Remote controller operation

Operation condition

Operation

Trunk open
  • Press and hold the trunk open button for 0. 5 second or more
Trunk open

OPERATION AREA

  • To ensure the Intelligent Key works effectively, use within 80 cm (31. 50 inches) range of each door, however the operable range may differ according to surroundings.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM flashes hazard warning lamps as a reminder and transmits horn chirp signal to IPDM E/R. IPDM E/R sound horns as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating function of hazard and horn reminder

Nissan Maxima. Operating function of hazard and horn reminder

Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).

How to change hazard and horn reminder mode

With CONSULT

Without CONSULT

Refer to Owner's Manual for instructions.

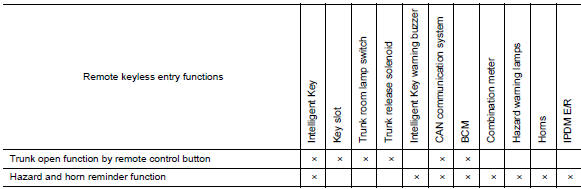

LIST OF OPERATION RELATED PARTS

Parts marked with × are the parts related to operation.

Nissan Maxima. LIST OF OPERATION RELATED PARTS

INTELLIGENT KEY : Component Parts Location

Nissan Maxima. Component Parts Location

Nissan Maxima. Component Parts Location

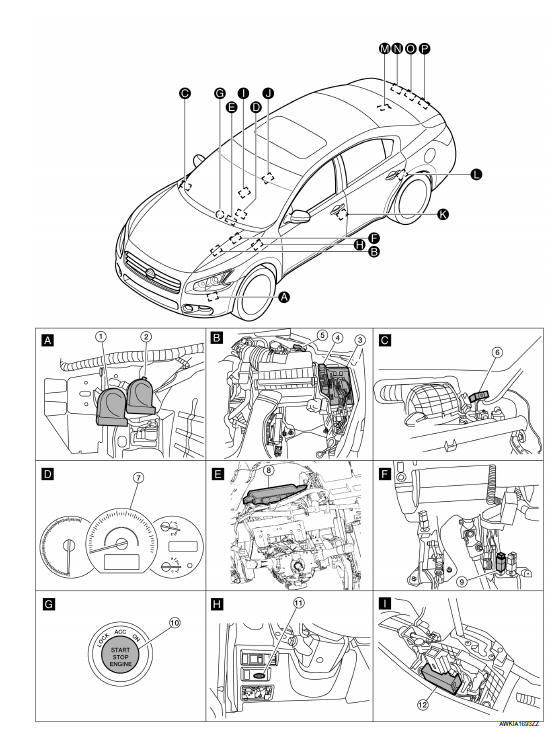

  1. Horn (low) E215 (view with front fender protector LH removed)
  2. Horn (high) E216
  3. IPDM E/R E17, E18
  4. Horn relay H-1
  5. Intelligent Key warning buzzer E28
  6. Remote keyless entry receiver M27 (view with instrument panel removed)
  7. Combination meter M24
  8. BCM M16, M17, M18, M19, M20, M21 (view with instrument panel removed)
  9. Stop lamp switch E38
  10. Push button ignition switch M38
  11. Key slot M40
  12. CVT shift selector (park position switch (Intelligent Key system)) M78
  13. Front console antenna M41 (view with center console assembly removed)
  14. Front outside handle LH (outside key antenna) D6
    Front outside handle RH (outside key antenna) D106
  15. Front outside handle LH (request switch) D15
    Front outside handle RH (request switch) D115
  16. Front door lock assembly LH (door unlock sensor) D10
  17. Front door switch LH B8 RH B108
  18. Rear door switch LH B18 RH B116
  19. Rear parcel shelf antenna B29
  20. Trunk opener request switch T5
  21. Rear bumper antenna B46
  22. Trunk lamp switch and trunk release solenoid T7

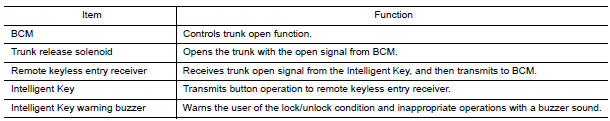

INTELLIGENT KEY : Component Description

Nissan Maxima. Component Description

    Door lock function
    DOOR LOCK AND UNLOCK SWITCH DOOR LOCK AND UNLOCK SWITCH : System Diagram DOOR LOCK AND UNLOCK SWITCH : System Description DOOR LOCK FUNCTION Functions Available by Operating the Door Lock ...

    Warning function
    System Description OPERATION DESCRIPTION The warning functions are as follows and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, ...
