Nissan Maxima Service and Repair Manual: Wiring diagram
SUNROOF SYSTEM
Wiring Diagram
Sunroof motor assembly
Referenc

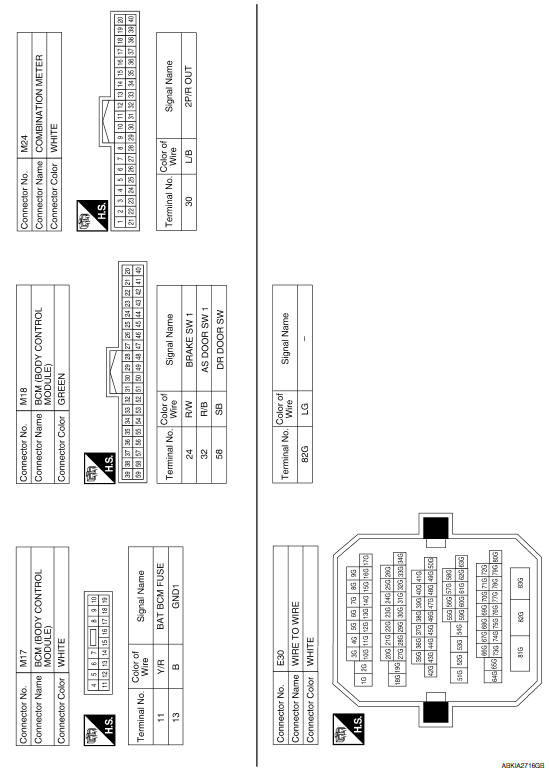

TERMINAL LAYOUT
PHYSICAL VALUES
...
Other materials:
U1000 CAN comm circuit
Description
CAN (Controller Area Network) is a serial communication line for real time
application. It is an on-vehicle multiplex
communication line with high data communication speed and excellent error
detection ability. Many electronic
control units are equipped onto a vehicle, and each co ...
Turn signal and hazard warning lamps
System Diagram
System Description
BCM (Body Control Module) controls turn signal lamp (RH and LH) and
hazard warning lamp operation.
Combination meter operates turn signal indicator (RH and LH) according
to CAN communication signals from BCM.
Component Parts Location
BCM M1 ...
Relay control system
System Diagram
System Description
IPDM E/R activates the internal control circuit to perform the relay ON-OFF
control according to the input signals
from various sensors and the request signals received from control units via CAN
communication.
CAUTION:
IPDM E/R integrated relays cann ...
