Nissan Maxima Service and Repair Manual: Rear spoiler

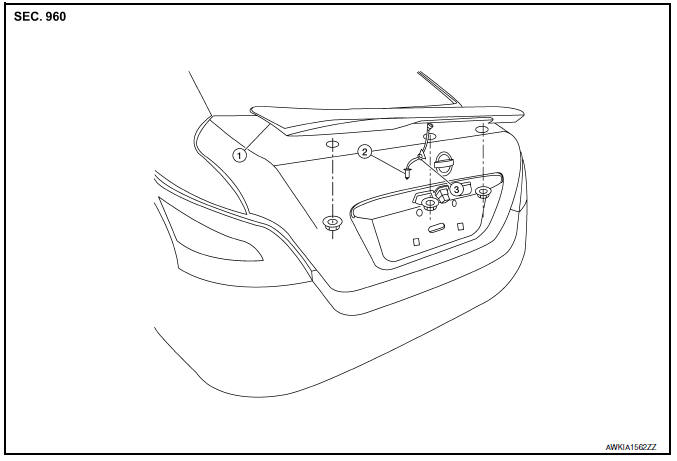

Exploded View
- Rear spoiler assembly
- High-mounted stop lamp harness connector
- Harness grommet
Removal and Installation
Removal
- Remove trunk lid finisher. Refer to INT-36, "Removal and Installation".
- Disconnect the harness connector (1) from the high-mounted stop lamp.
- Remove the rear spoiler assembly nuts.
- Using a suitable heating tool (A) may also be necessary to evenly heat the rear spoiler contact surface (1) while releasing the tape with a suitable tool (B).
- Loosen the harness grommet, and gently lift the rear spoiler assembly upward off of trunk lid.
Installation
Installation is in the reverse order of removal.
NOTE:
- Before installing rear spoiler, clean the surface where it will be mounted with isopropyl alcohol or equivalent to degrease the surface.
- Before installing, be sure there are no gaps or waves in the adhesive-backed foam tape where the surfaces meet.
- During installation, be sure harness grommet of high-mounted stop lamp is fully seated into trunk lid opening prior to final rear spoiler assembly placement.
License lamp finisher
Exploded View
License lamp finisher
Trunk request switch connector
Grommet Clip
Removal and Installat
REMOVAL
Remove the trunk lid finisher. Refer to INT-36, "Removal and
I ...
