WARNING
You could be burned or seriously injured if it is misused or mishandled.
Always stop the engine and do not smoke or allow open flames or sparks near the vehicle when refueling.
CAUTION
If the light illuminates
because
the fuel-filler cap is loose or missing,
tighten or install the cap and continue
to drive the vehicle. The
light
should turn off after a few driving trips.
If the light does not turn off
after a
few driving trips, have the vehicle inspected.
It is recommended that you visit a NISSAN dealer for this service.
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to remove.

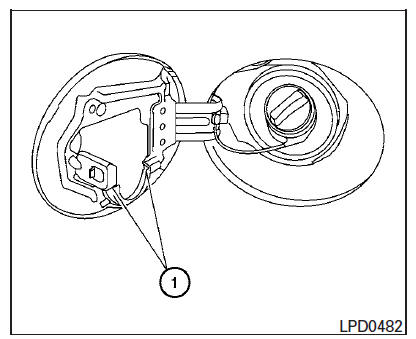

2. Put the fuel-filler cap on the cap holder 1 while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuelfiller tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Trunk release solenoid
Description
Performs trunk lid open with signal from BCM.
Component Function Check
1. CHECK TRUNK LID OPENER CANCEL SWITCH
Check trunk lid opener cancel switch position.
2. CHECK FUNCTION
Perform Active Test TRUNK/GLASS HATCH with CONSULT.
Touch "OPEN" and check that trunk lid opens
...
Main line between HVAC and A-bag circuit
Diagnosis Procedure
1.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
Turn the ignition switch OFF.
Disconnect the battery cable from the negative
terminal.
Disconnect the following harness connectors.
A/C auto amp.
Harness connectors M1 and ...
Sunshade
Exploded View
Center bracket (RH)
Rear sunshade
Front sunshade
Center bracket (LH)
Sunshade carrier assembly Front
Removal and Installation
REMOVAL
Open glass lid and sunshades.
Remove the headlining. Refer to INT-33, "Removal and
Installation".
Release front sunsha ...
