COMMON ITEM

COMMON ITEM: CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode	Description
Ecu Identification	The BCM part number is displayed
Self Diagnostic Result	Displays the diagnosis results judged by BCM
Data Monitor	The BCM input/output signals are displayed.
Active Test	The signals used to activate each device are forcibly supplied from BCM.
Work support	Changes the setting for each system function.
Configuration	Enables to read and save the vehicle specification. Enables to write the vehicle specification when replacing BCM
CAN Diag Support Mntr	Monitors the reception status of CAN communication viewed from BCM

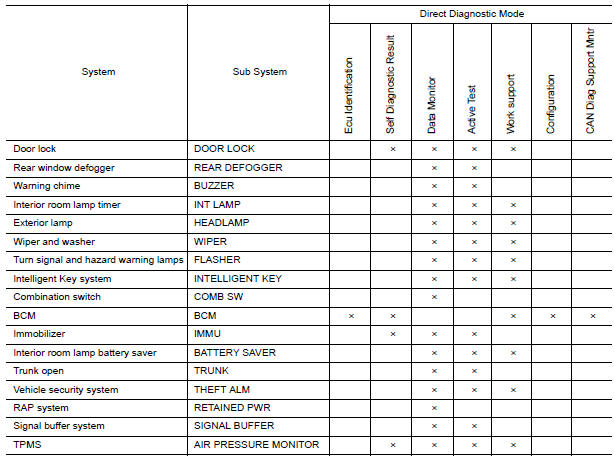

SYSTEM APPLICATION

BCM can perform the following functions.

Nissan Maxima. SYSTEM APPLICATION

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER: CONSULT Function (BCM - REAR DEFOGGER)

DATA MONITOR

Nissan Maxima. DATA MONITOR

ACTIVE TEST

Nissan Maxima. ACTIVE TEST

Rear window defogger system
