Nissan Maxima Service and Repair Manual: Diagnosis system (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
APPLICATION ITEM

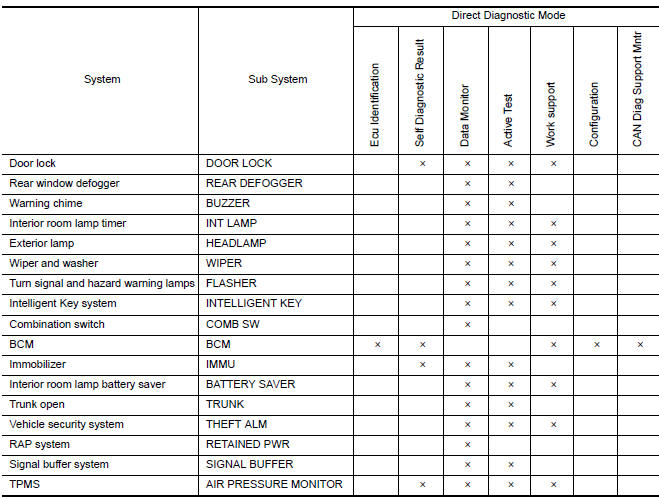

CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION

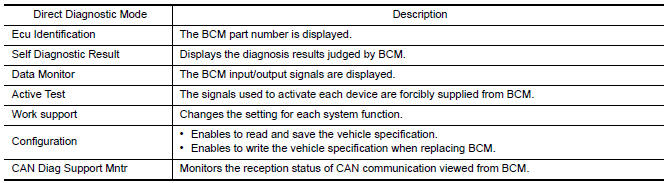

BCM can perform the following functions.
BCM
BCM : CONSULT Function (BCM - BCM)
ECU IDENTIFICATION
The BCM part number is displayed.
SELF DIAGNOSTIC RESULT
WORK SUPPORT
CONFIGURATION
CAN DIAG SUPPORT MNTR
Power distribution system
System Description
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
POWER DISTRIBUTION SYSTEM (PDS) is the system that BCM controls
with the operation of the pushbutton
ignition switch and ...
