PREPARATION

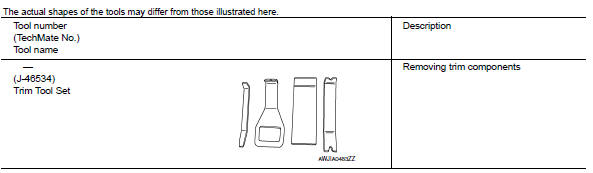

Special Service Tools

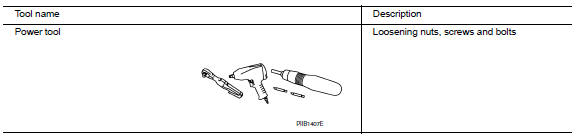

Commercial Service Tools
Service data and specifications (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Wheel Alignment (Unladen*)
*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand
tools, and mats are in designated positions.
Ball Joint
Wheelarch Height (Unladen*1)
*1: Fuel, engine coolant, and lubricants are full. Spare tire, ...
Wind deflector
Removal and Installation
REMOVAL
Open the glass lid.
Remove the side screw (A) to release the wind deflector side
arms (1). : Front
Disconnect and release the inner blind (1) slide clip from wind
deflector.
: Front
Remove the front screws (A), then remove wind deflector ...
Turn signal and hazard warning lamps
System Diagram
System Description
BCM (Body Control Module) controls turn signal lamp (RH and LH) and
hazard warning lamp operation.
Combination meter operates turn signal indicator (RH and LH) according
to CAN communication signals from BCM.
Component Parts Location
BCM M1 ...
