Nissan Maxima Service and Repair Manual: Audio system

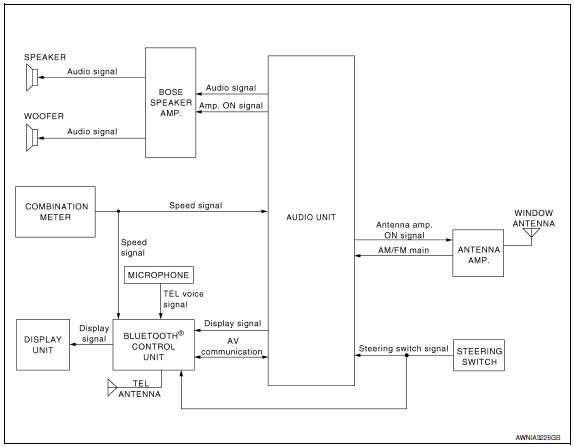

System Diagram
System Description
AUDIO SYSTEM
The audio system consists of the following components
- Audio unit
- Display unit
- Bluetooth control unit
- Window antenna
- BOSE speaker amp.
- Steering wheel audio control switches
- Front door speakers
- Tweeters
- Center speaker
- Rear door speakers
- Rear subwoofers
When the audio system is on, radio signals are received by the window antenna. The audio unit then sends audio signals to the BOSE speaker amp. The Bose speaker amp. sends the audio signals to the front door speakers, tweeters, center speaker, rear door speakers and rear subwoofers.
Refer to Owner's Manual for audio system operating instructions.
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control level can be selected by the customer. Refer to Owner's Manual for operating instructions

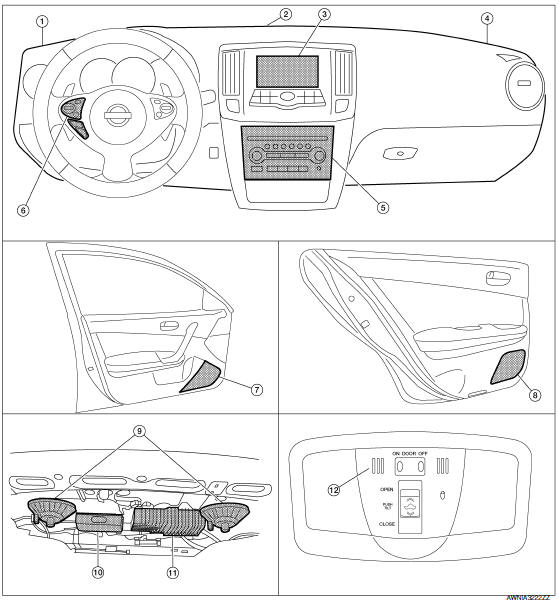

Component Parts Location
- Tweeter LH M51
- Center speaker M130
- Display unit M109
- Tweeter RH M52
- Audio unit M132, M135
- Steering wheel audio control switches
- Front door speaker LH D3 RH D103
- Rear door speaker LH D202 RH D302
- Rear subwoofer LH B106 RH B107
- Bluetooth control unit B125, B130, B131
- BOSE speaker amp. B109, B110
- Microphone R7
Component Description
| Part name | Description |
| Audio unit | Controls audio system and AUX IN system functions |
| Bluetooth control unit |
|
| Display unit |
|
| BOSE speaker amp. | Receives power (amp ON) and audio signals from audio unit, and outputs audio signals to each speaker |
| Steering wheel audio control switches |
|
| Front door speakers |
|
| Center speaker |
|
| Tweeters |
|
| Rear door speakers |
|
| Rear subwoofers |
|
Hands-free phone system
System Diagram
System Description
Refer to the Owner's Manual for Bluetooth telephone system operating
instructions.
NOTE: Cellular telephones must have their
wireless connection set up (pair ...
