Nissan Maxima Service and Repair Manual: Rear view monitor system

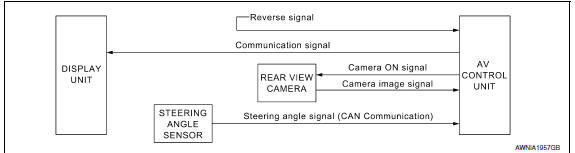

System Diagram

Nissan Maxima. System Diagram

System Description

When the shift selector is in the R position, the display shows a view to the rear of the vehicle. Lines which indicate the vehicle clearance and distances are also displayed.

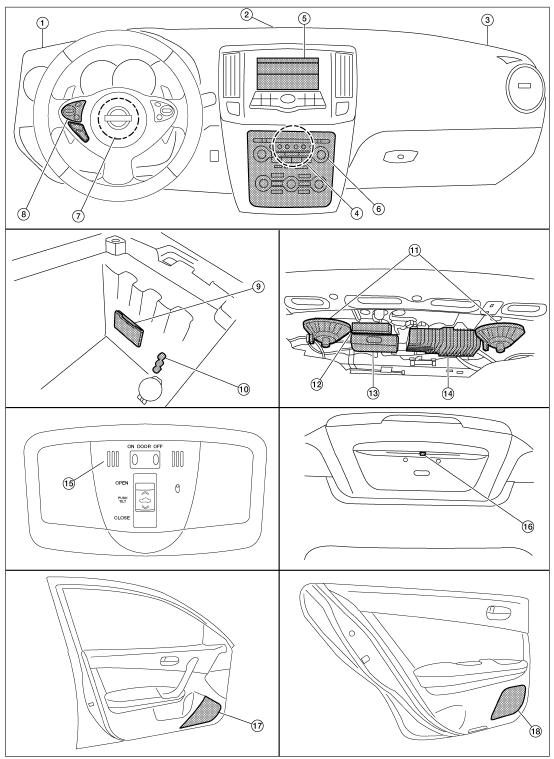

Component Parts Location

Nissan Maxima. Component Parts Location

  1. Tweeter LH M51
  2. Center speaker M130
  3. Tweeter RH M52
  4. AV control unit M152, M153, M154, M155, M156, M157, M158, M159 (located behind A/C and AV switch assembly)
  5. Display unit M141
  6. A/C and AV switch assembly M98
  7. Steering angle sensor M53 [located in steering column behind combination switch(spiral cable)]
  8. Steering wheel audio control switches
  9. USB interface M211 (view in center console)
  10. Aux jack M209
  11. Rear subwoofers (view under rear parcel shelf) LH B106 RH B107
  12. Satellite radio tuner (if equipped) B111
  13. Bluetooth control unit B128, B130, B131
  14. BOSE speaker amp B109, B110
  15. Microphone R7
  16. Rear view camera T101
  17. Front door speaker LH D3 RH D103
  18. Rear door speaker LH D202 RH D302

Component Description

Part name  Description
AV control unit
  • Sends camera ON signal to the rear view camera
  • Receives camera image signal from the rear view camera
  • Sends image signal to the display unit Rear view camera - Receives camera ON signal fr
Rear view camera
  • Receives camera ON signal from the AV control unit
  • Sends image signal to the AV control
Steering angle sensor  Sends steering angle information to the AV control unit via CAN communic
